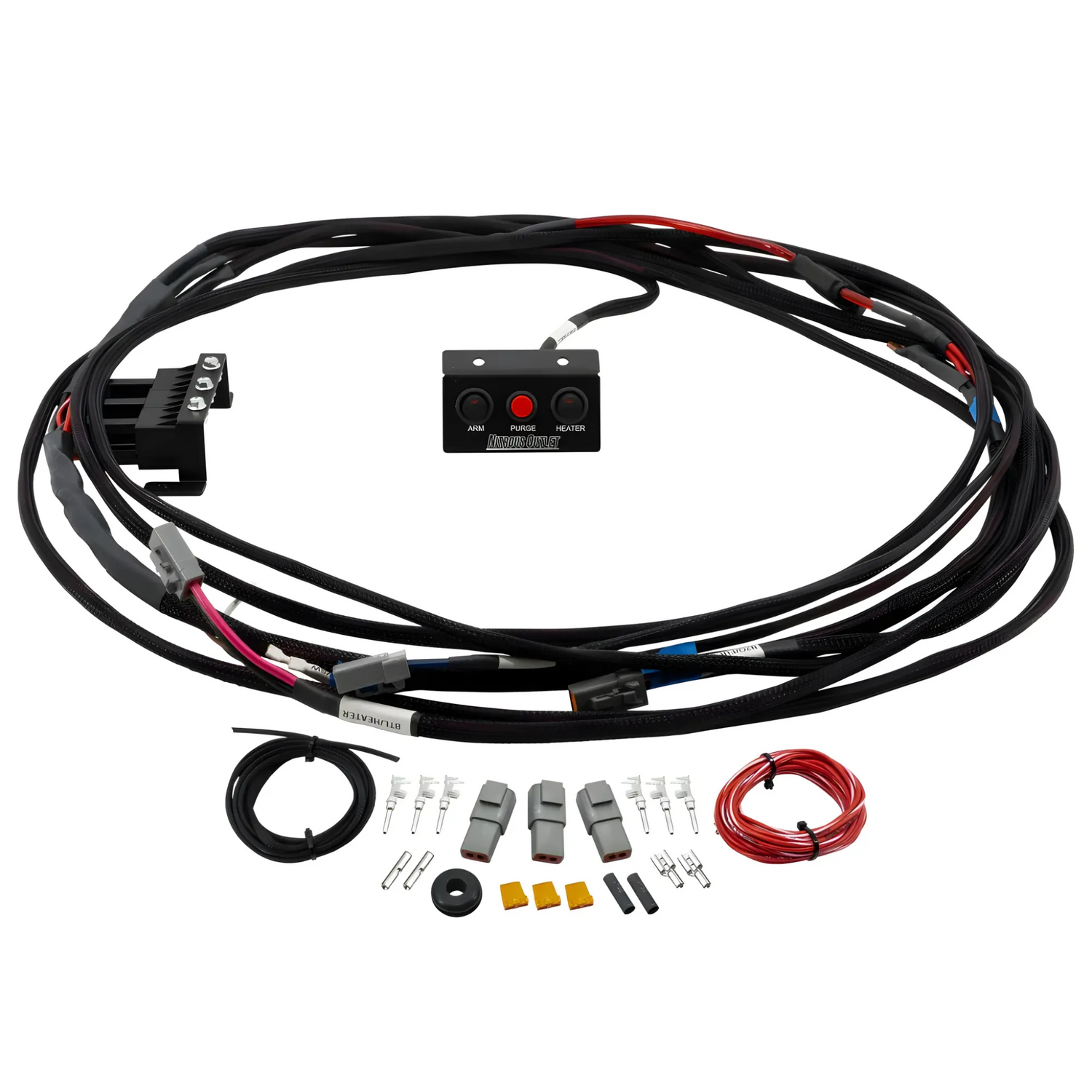

X-Series Plug and Play Wiring Harness - Stage 2

• System, Purge, Heater & WOT Switch Harness




• Harness Routing Instructions




• Detailed Colored Wiring Diagram




• WOT Switch Activation

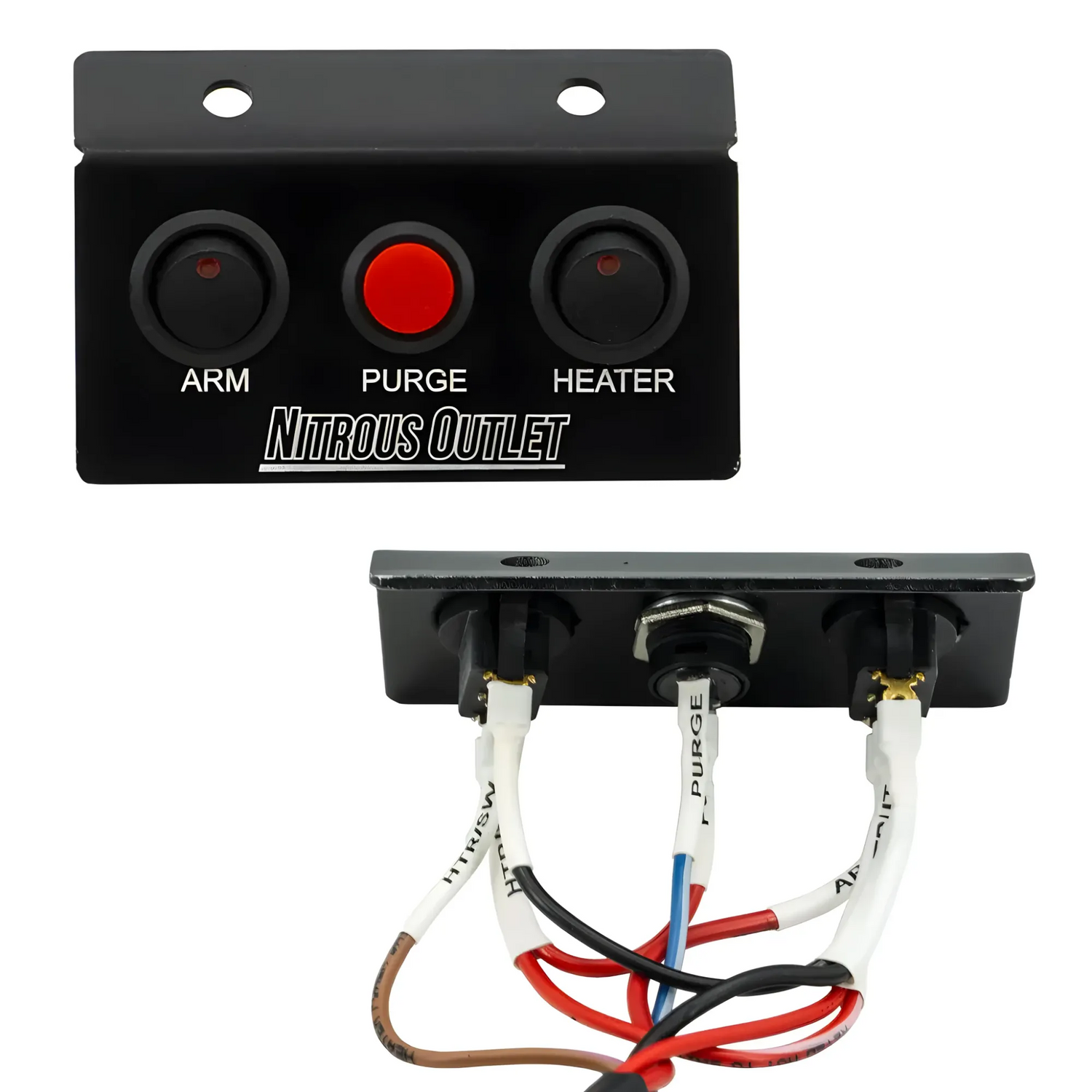

• Custom Switch Panel

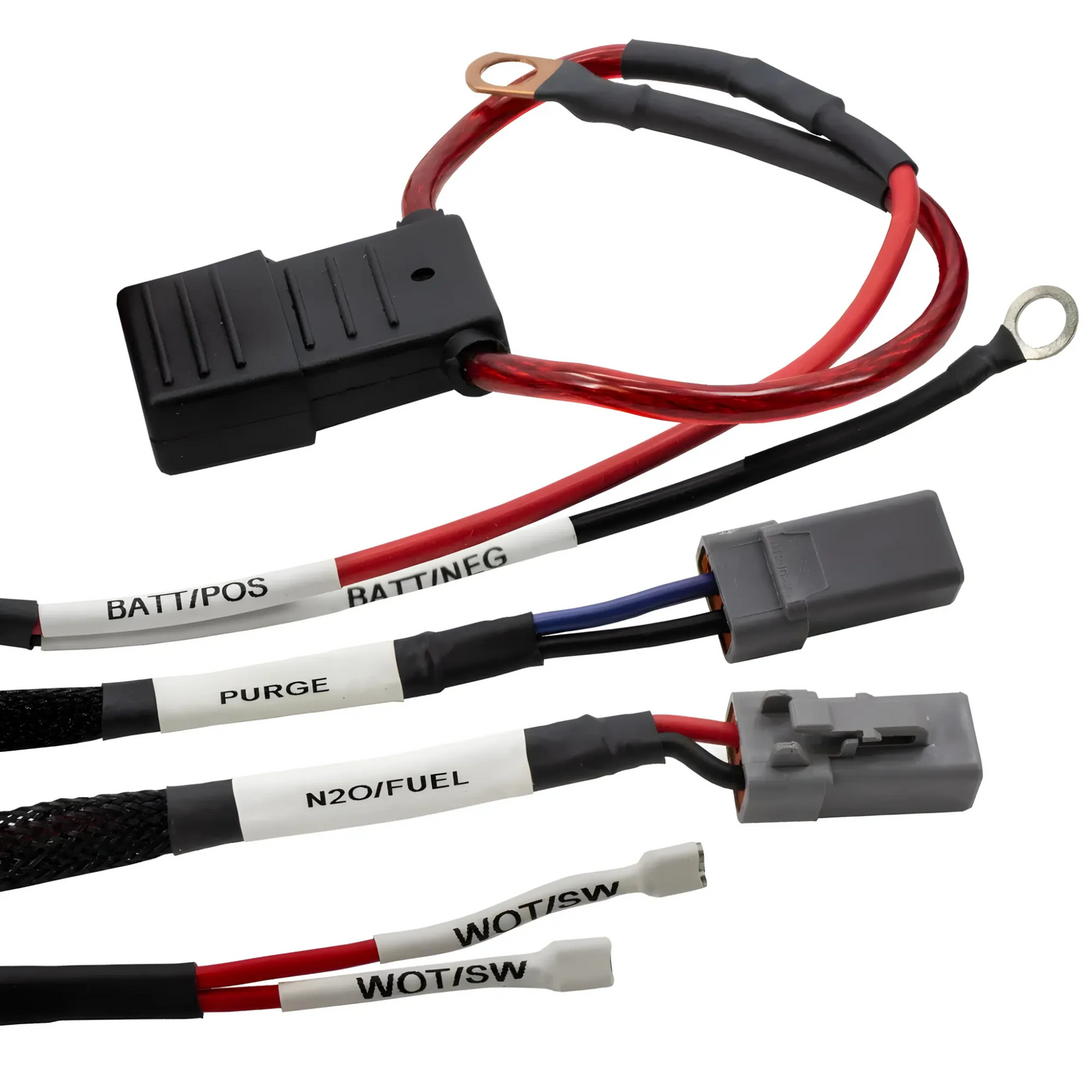

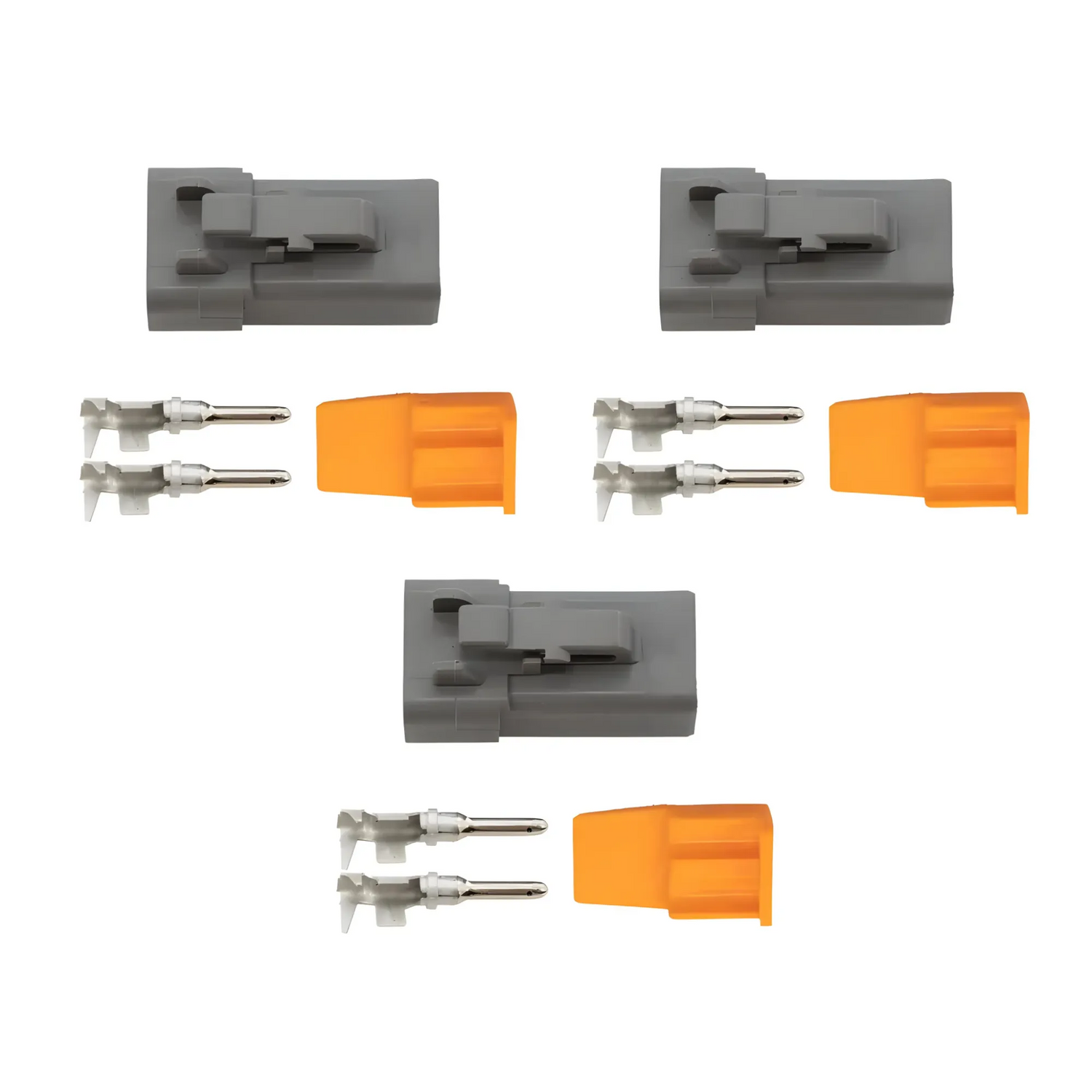

• Pre-terminated Deutsch Connectors




• High Quality Molex Terminals




• Inline 70-Amp Fuse

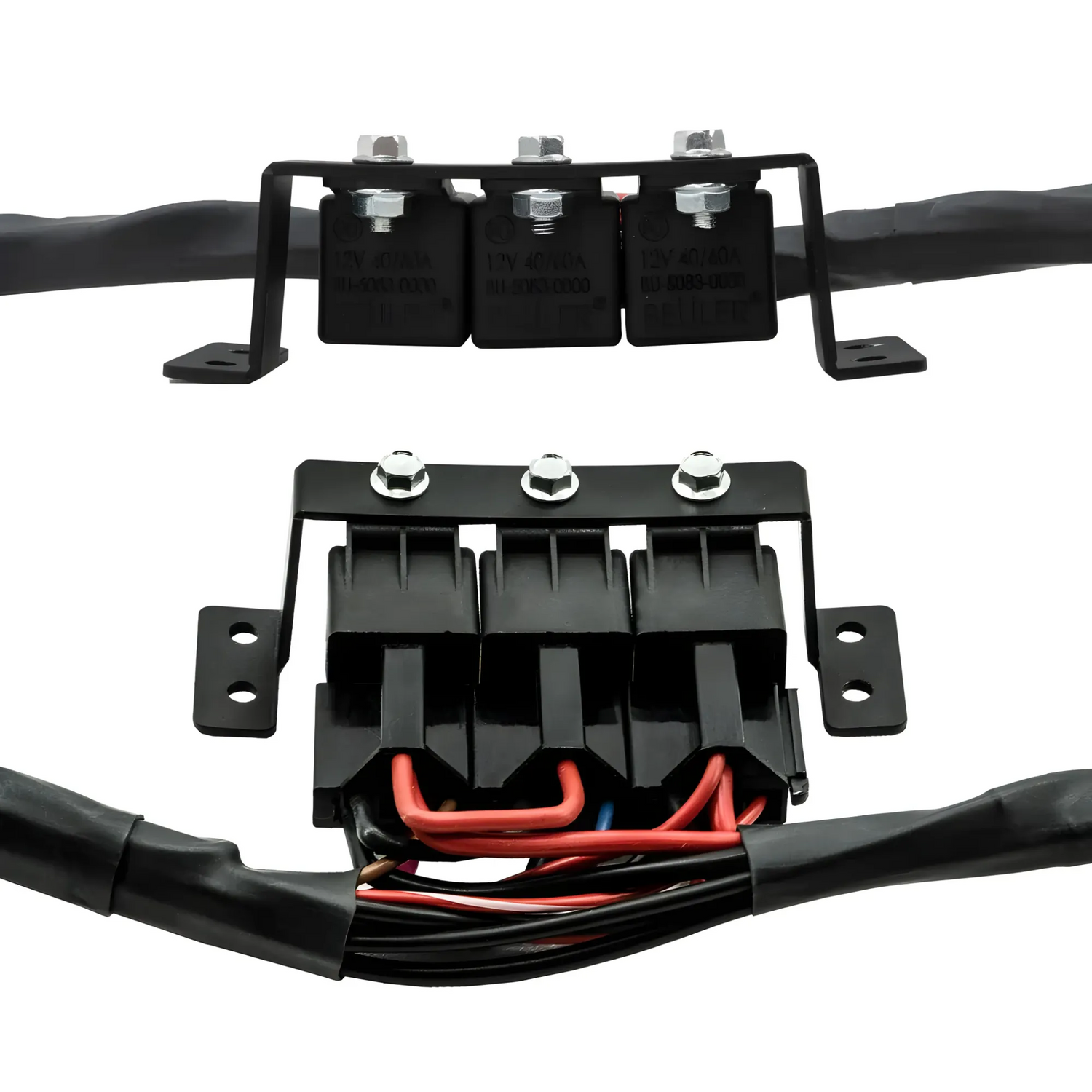

• Bueler 40/60-Amp Relays

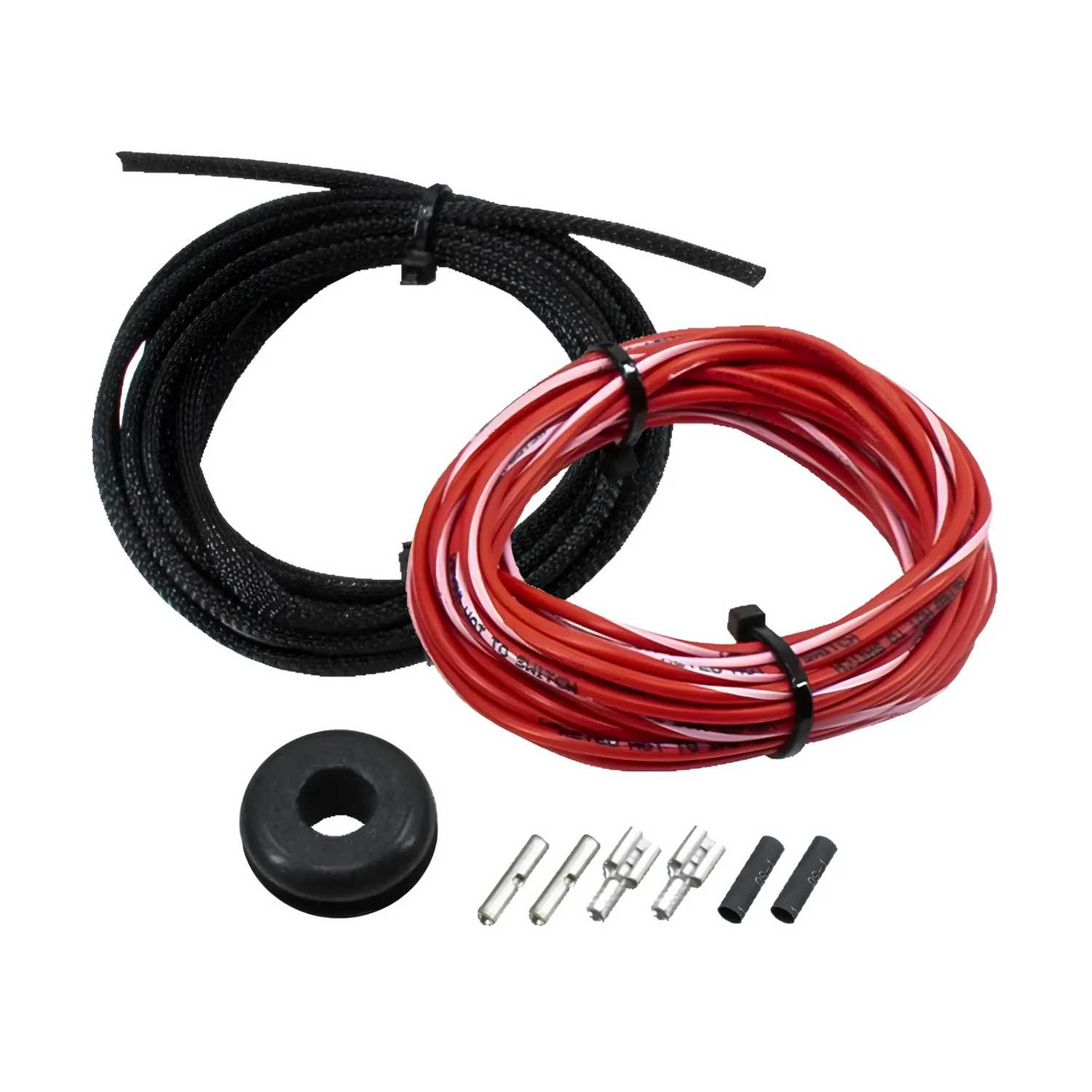

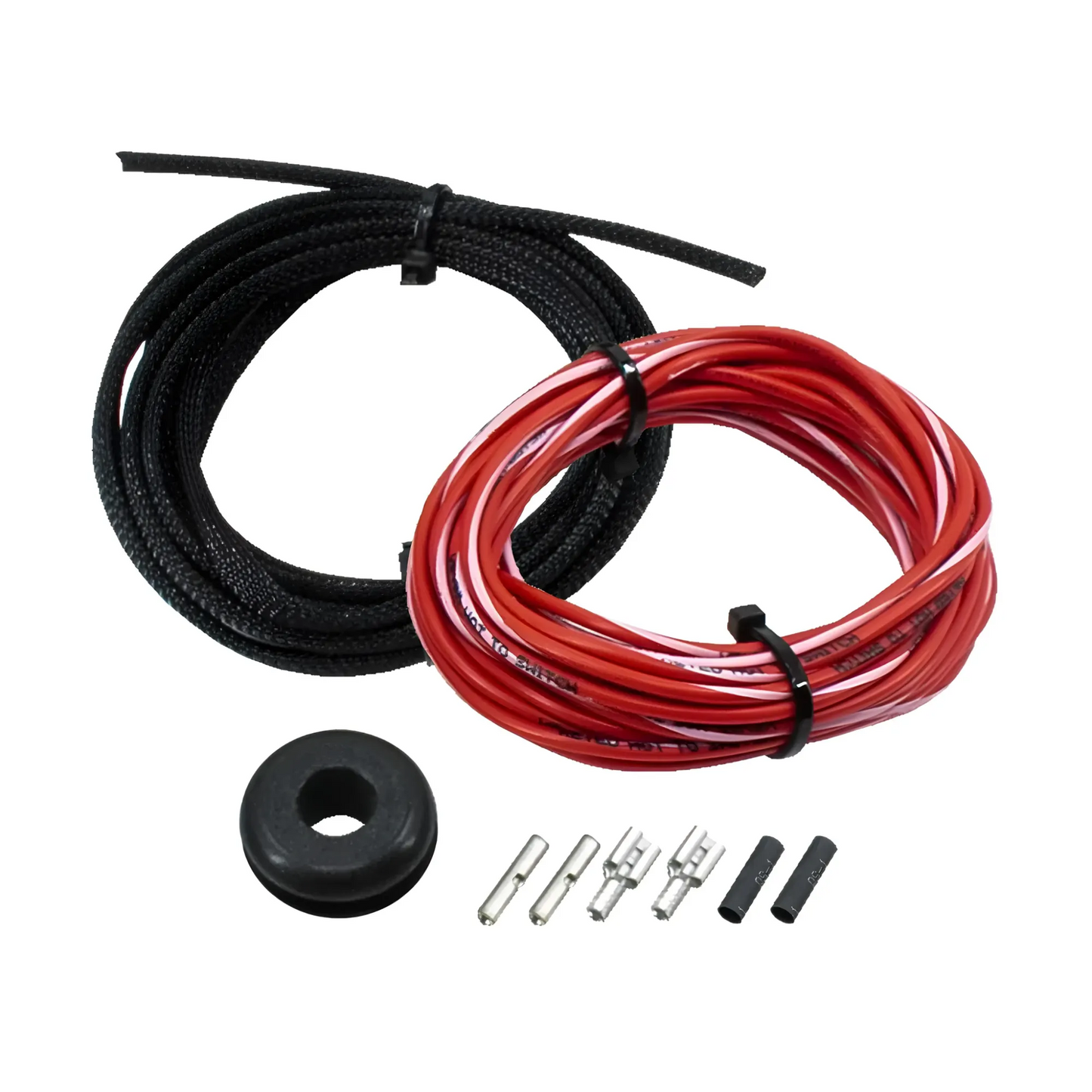

• Protective Expandable Wiring Loom




• Individual Labeled Wiring Leads




• Automotive Copper Core Wire With Protective Silicone Coating

Cut your installation time in half with the X-Series stage 2 plug and play harness!

The X-series stage 2 Harness was designed to provide a quick and easy wiring option for the do-it-yourself enthusiast. This harness is user friendly, and can be used by beginners and pros alike. The end result is a professional prebuilt harness that will simplify system installation saving you time and money.

This basic harness provides everything needed to wire in a X-series nitrous system, purge kit, bottle heater and WOT Switch.

Installation Guide:

X-Series Plug and Play Wiring Harness - Stage 2 (SKU: 12-11000-S2)
