GM 90mm LSX Plate System

• Flow Up To 400HP
• Anodized Billet Aluminum Plate
• 400+ HP Solenoids
• Fits 90mm 4 Bolt LSX Intakes
• Jetting Included For 50-100-150-200 HP

Flow Up To 400HP. this system comes out of the box with everything you need to spray 200HP but can spray up to 400HP with additional jetting.

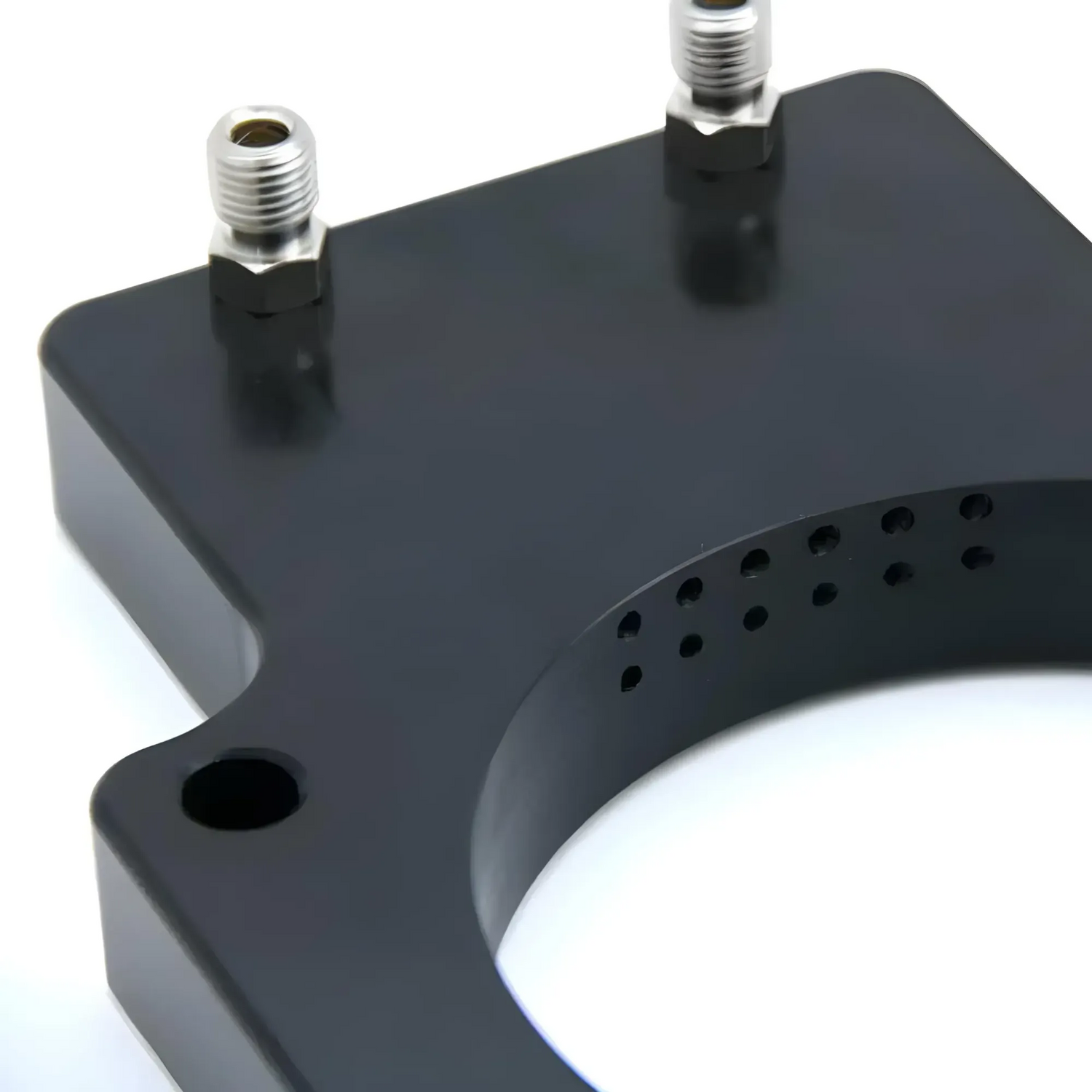

Superior Atomization. This injection plate has 6 specially designed nitrous and fuel discharge ports that completely saturate the air intake charge with the best atomized mixture possible. For higher horsepower levels proper distribution into the air stream is critical for even cylinder to cylinder distribution.

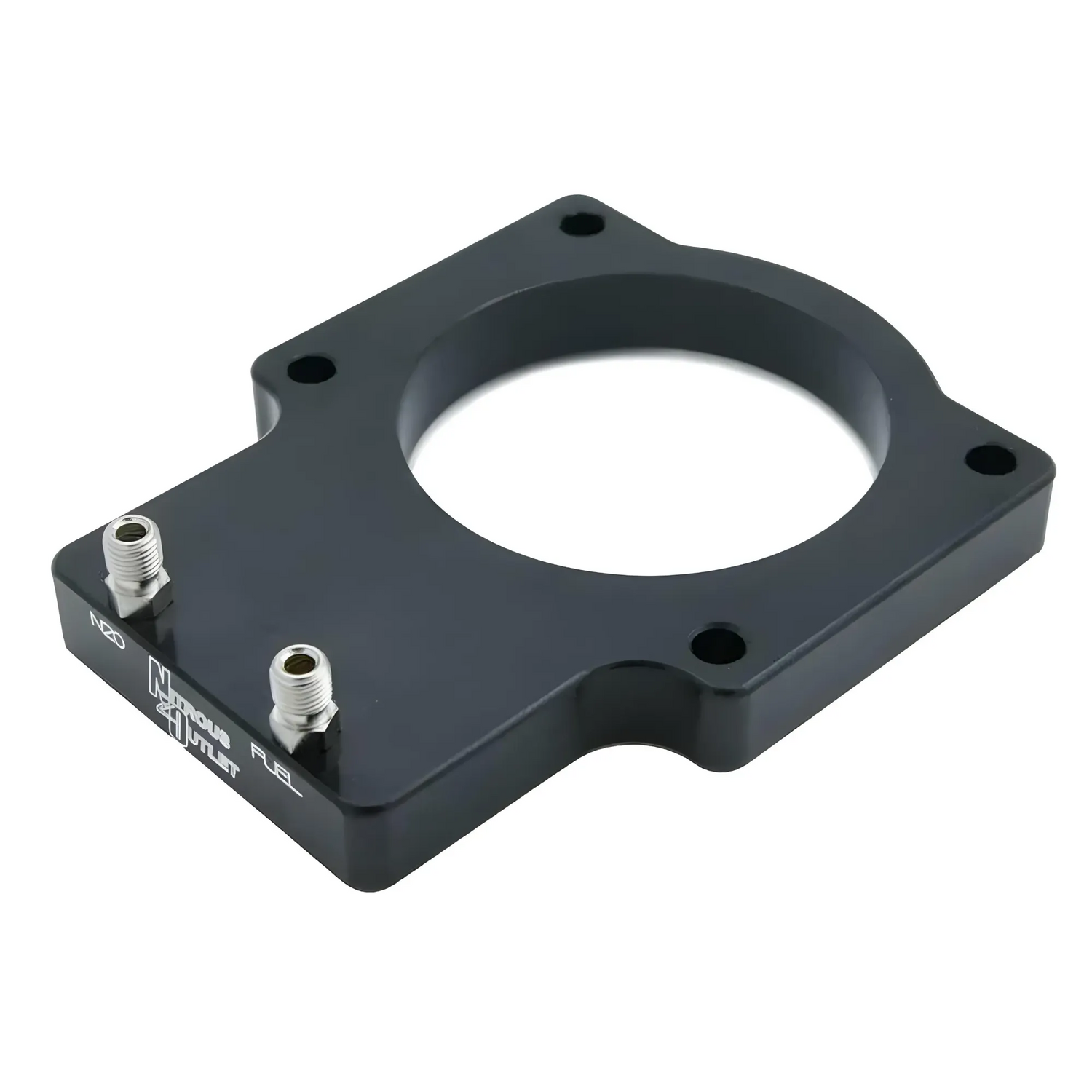

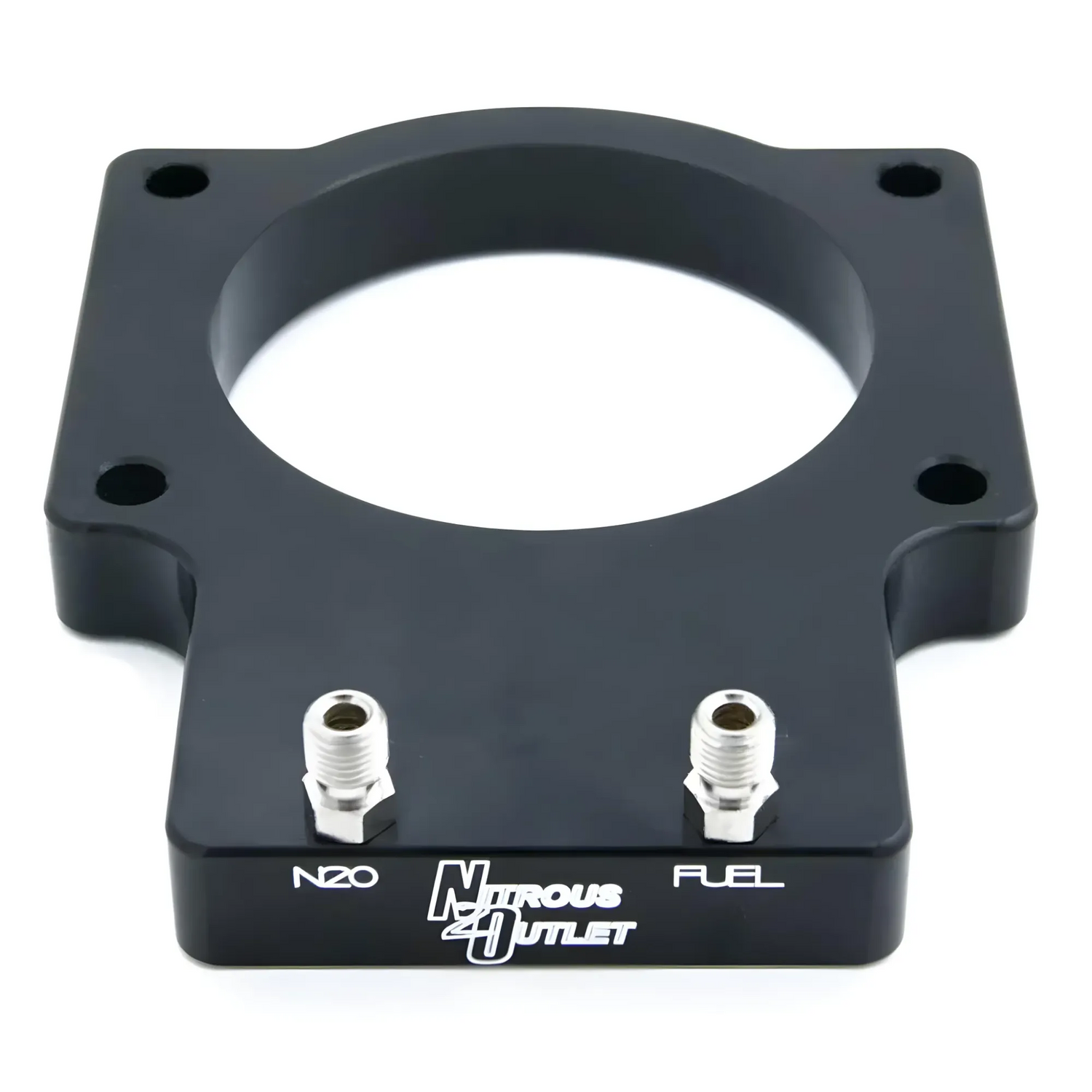

Wet Nitrous Plate. This system includes a billet aluminum plate to fit 90mm LSX intakes and is capable of flowing up to 400 HP of nitrous. Each billet plate has a black anodized finish with CNC engraved logo and fuel/nitrous labels.

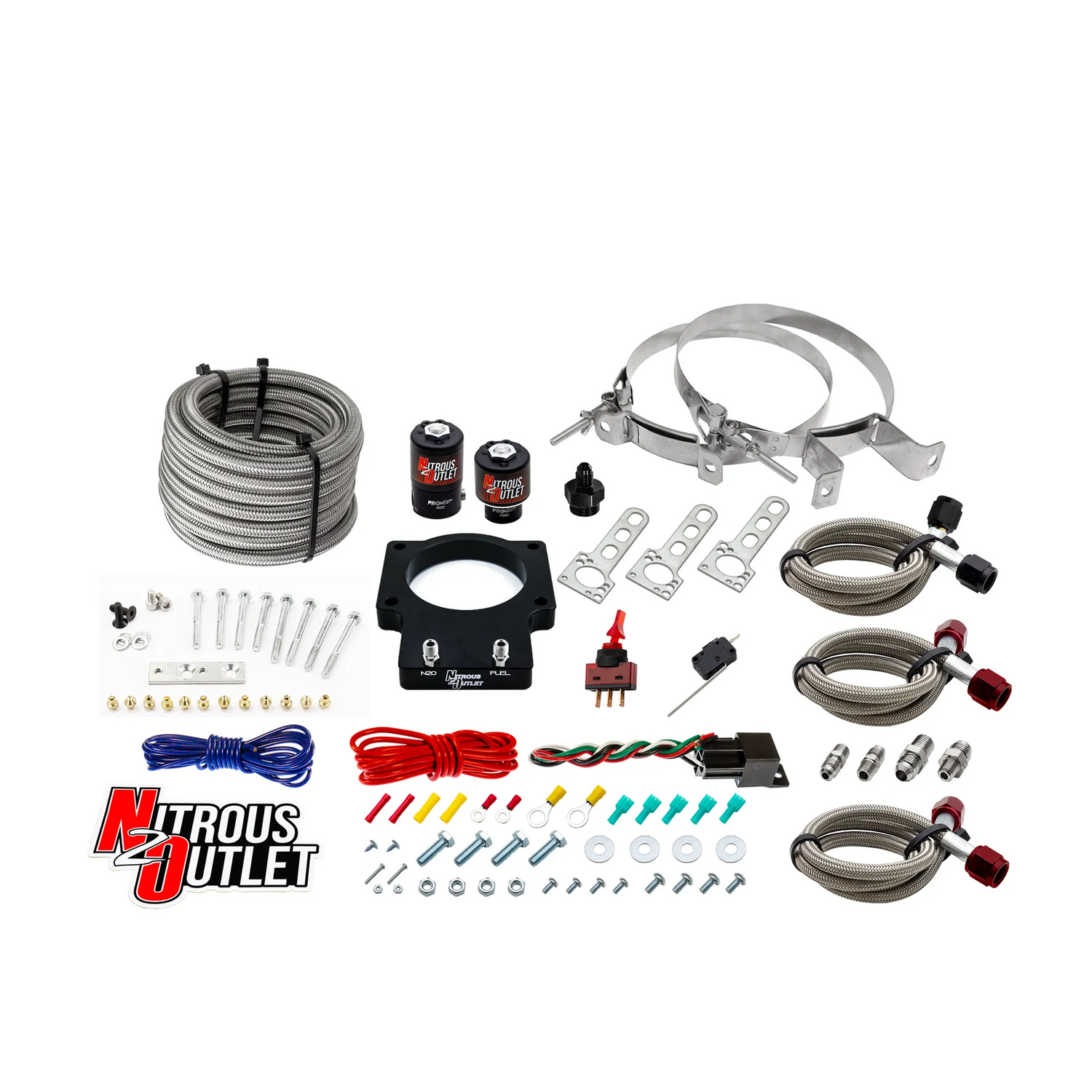

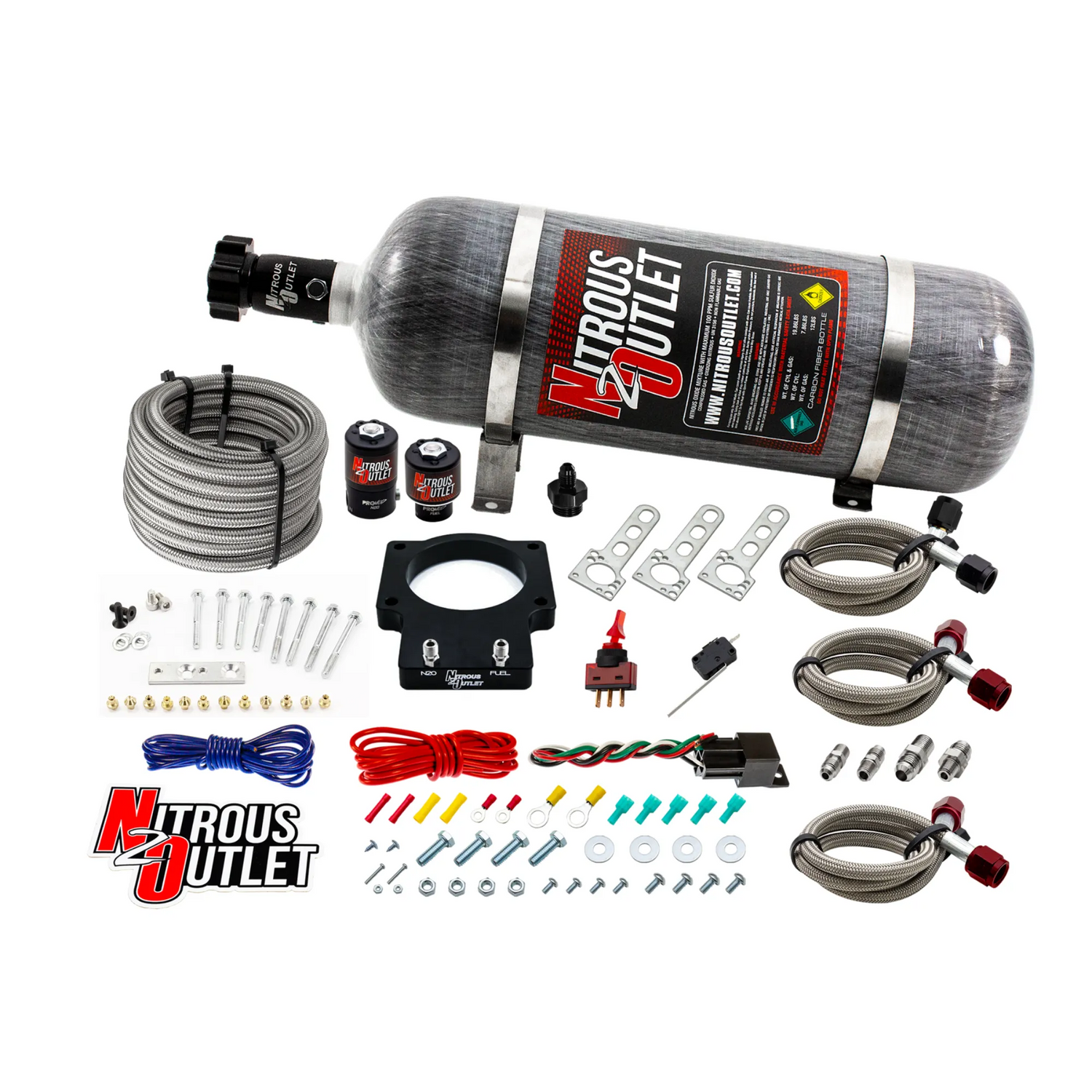

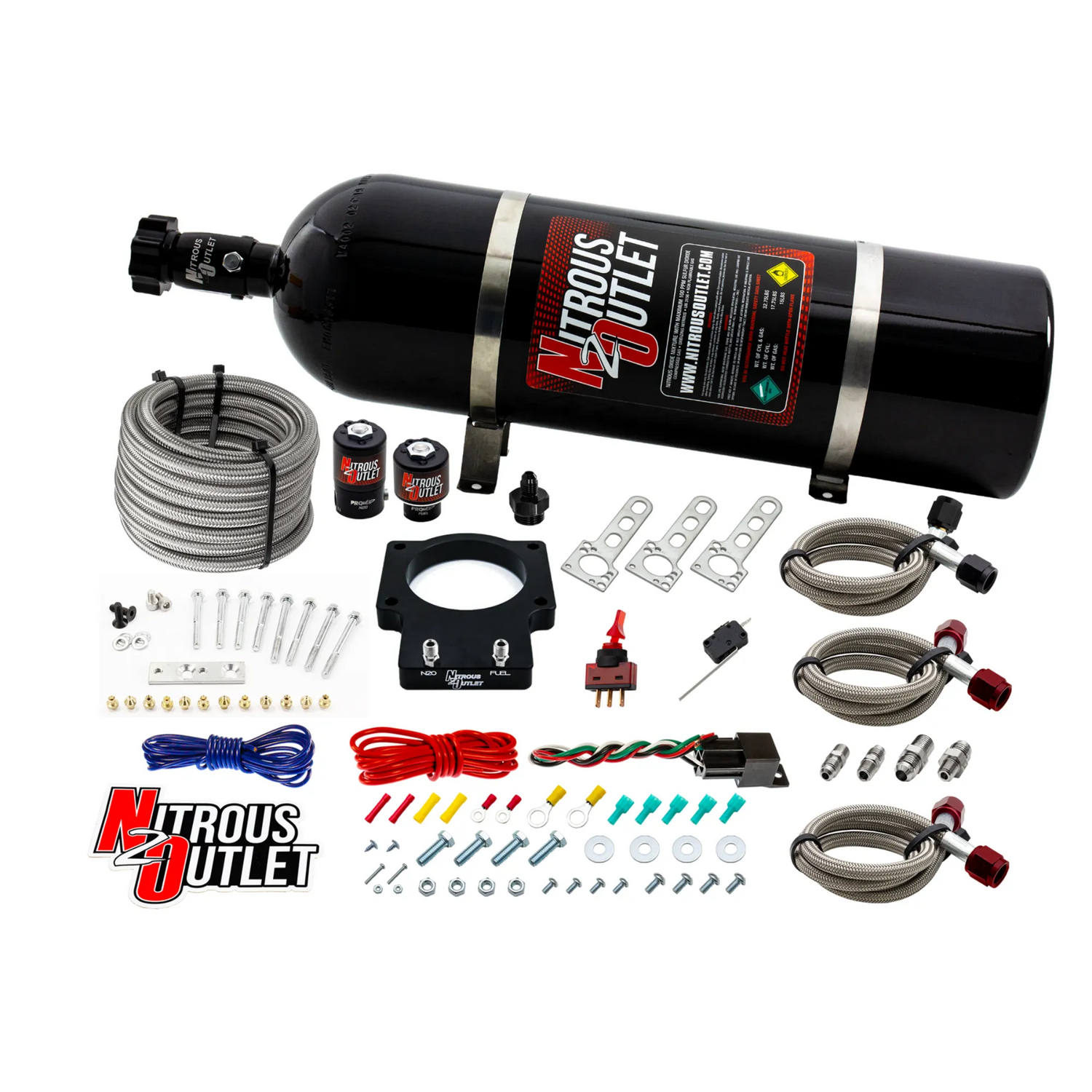

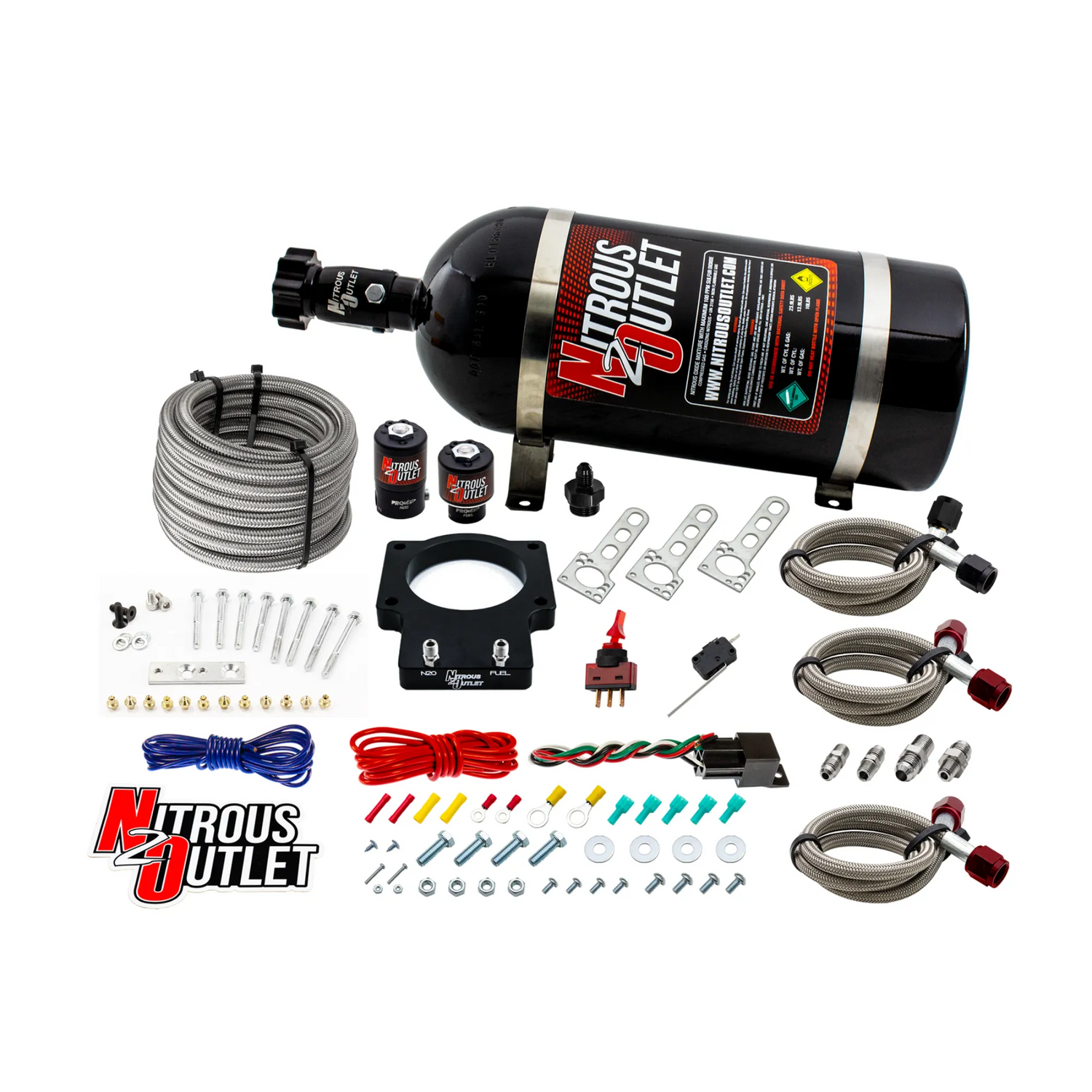

Complete System. This system includes all of the necessary components billet aluminum nitrous plate, 50-100-150-200 HP jetting, hardware, and wiring to properly install a wet nitrous system on your vehicle.

Wide Open Throttle Activation. This system includes a wide open throttle (WOT) switch that only allows the system to be activated when the motor is at full throttle. This safety feature will help prevent engine damage and lean spikes.

Application.  This system is specifically designed to fit 90mm Stock LSX intake manifolds and aftermarket 90mm intakes such as the FAST 90mm.

For 97-04 Corvette part # 00-42000 is needed

Installation Guides:

Universal GM Single Stage Plate Instructions
