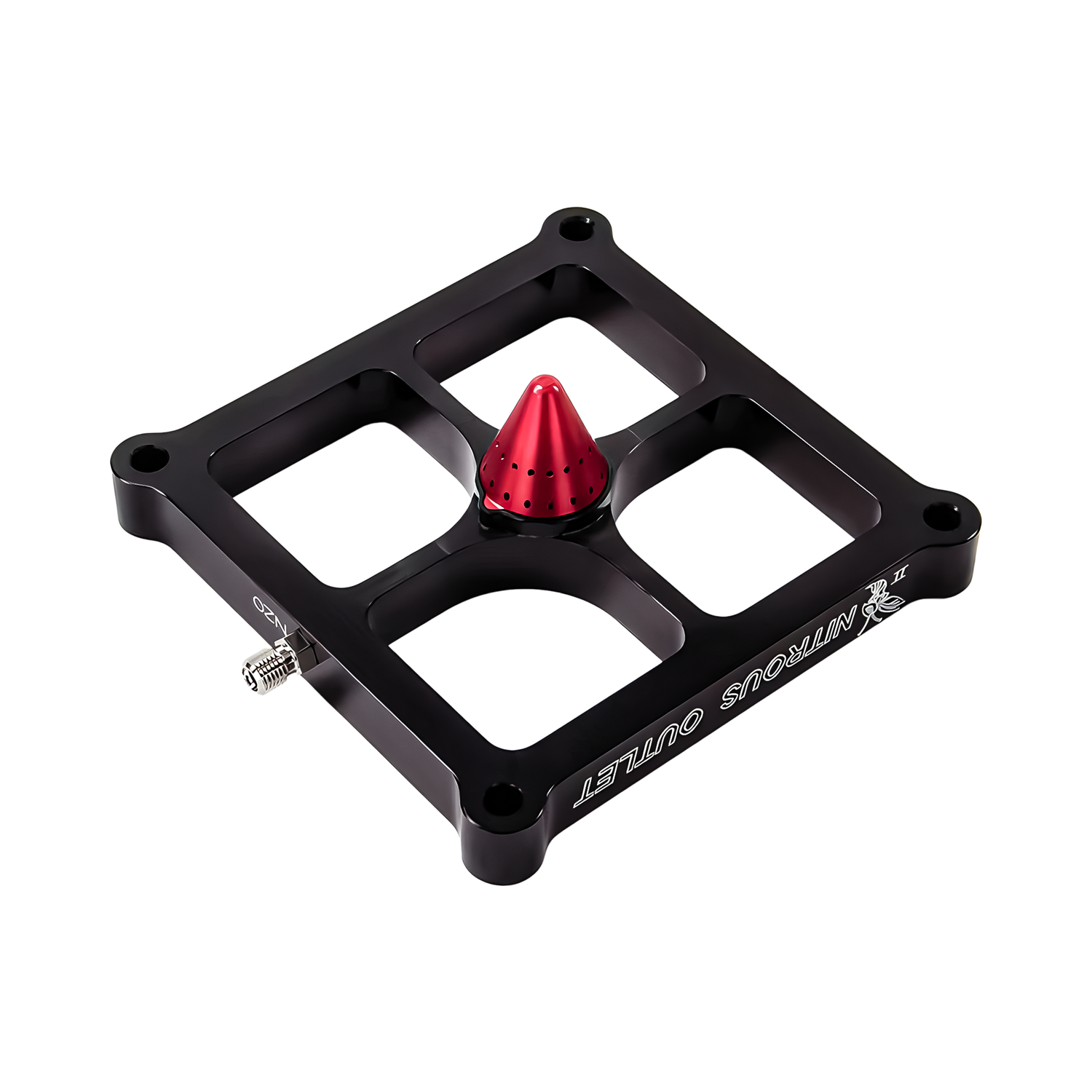

Stinger 2 4500 Dry Plate Only

• 634HP Max Flow
• Single Entry
• 4500 Flange
• 360° Nitrous Discharge Pattern
• Enhanced Atomization
• Anodized Billet Aluminum Stinger Plate
• Plate Only – Gasket and Jetting NOT Included

Innovation, Part 2: Engineered for Dry Nitrous Systems

The Stinger 2 Dry represents the next evolution in the acclaimed Stinger Nitrous Plate lineup, now specifically configured for dry nitrous applications. The design philosophy recognizes that nitrous delivery systems require tailored solutions—not a one-size-fits-all approach. This dry plate features a discharge cone positioned at the top of the intake throat, delivering nitrous horizontally in a 360° pattern for optimum saturation of the incoming air stream.

Design

The Stinger 2 Dry is a single-entry nitrous plate system that supplies up to 634HP max flow, purpose-built for dry nitrous setups where supplemental fuel is added by the engine’s own fuel system. Nitrous discharges from the cone and sweeps horizontally across the intake plenum, mixing efficiently into the airstream for uniform cylinder distribution. This design is ideal for intake manifolds with a deck height of 1¾” or less from the top of the runner to the carburetor flange.

Construction

Crafted from robust 6061 billet aluminum, the 4500 plate is .75” thick, black anodized, and emblazoned with the Nitrous Outlet logo and clear N2O entry markings. The signature red-anodized cone houses 16 precisely engineered nitrous discharge holes for consistent distribution. Note: This is a plate-only kit; gaskets, jets, and hardware are not included.

Application

The Stinger 2 Dry plate is designed to thoroughly saturate the intake plenum with a 360° nitrous spray pattern. It is especially recommended for use with intake manifolds where the distance from the top of the intake runner to the carburetor flange is 1¾” or less, ensuring maximum responsiveness and power potential in dry nitrous setups.
