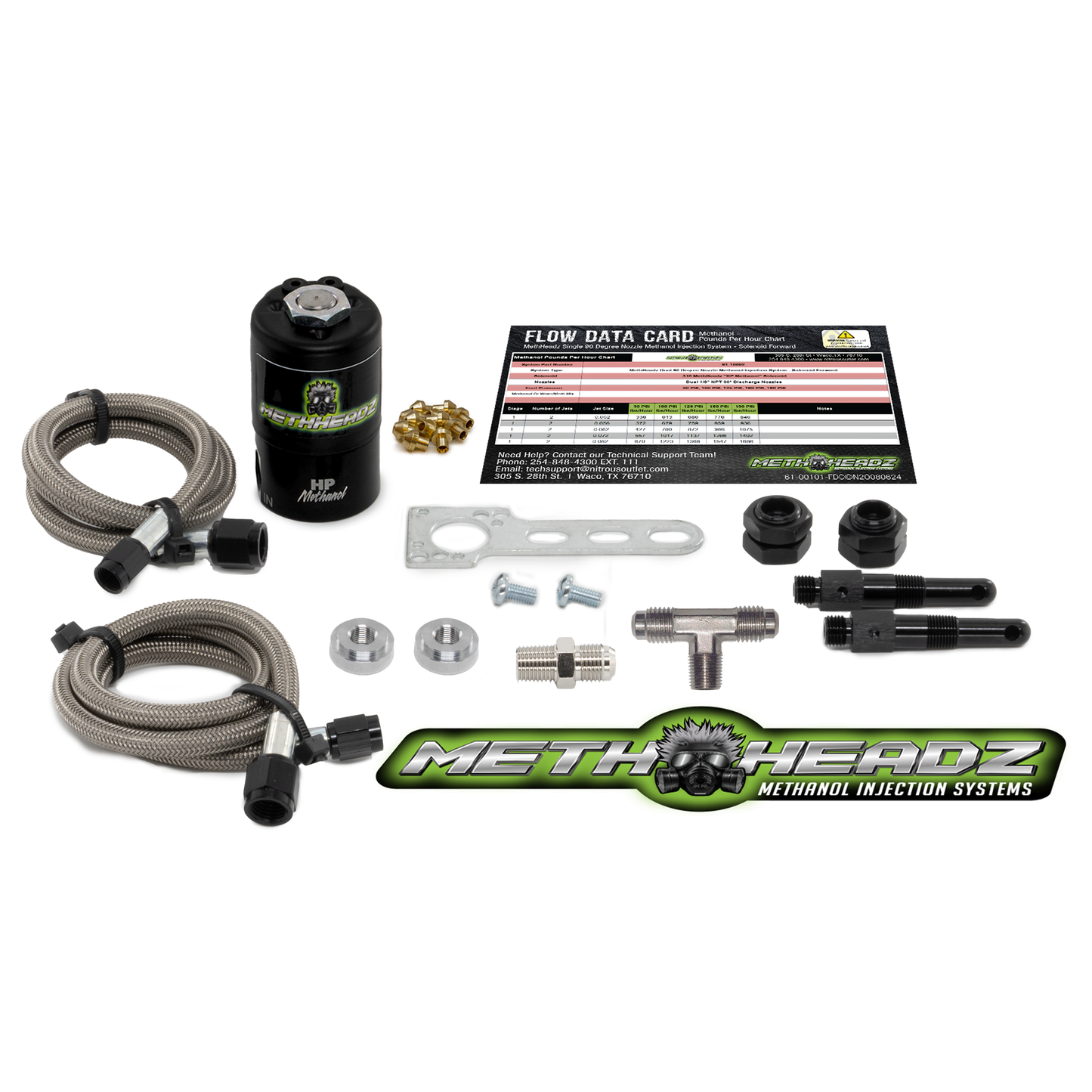

MethHeadz Dual 90 Degree Nozzle Methanol Injection System - Solenoid Forward

SKU: 61-10002

$299.99 USD
  • Solenoid Forward System
  • .310 Orifice Solenoid Rated For Up to 200 psi
  • Solenoid Draws 258 Watts at 19.7 Amps
  • Features Dual 90-degree Discharge Nozzle's
  • Comprehensive Flow Data Card for Precise Tuning
  • Accurate Pounds Per Hour of Fuel at Five Pressure Settings: 30 PSI, 100 PSI, 125 PSI, 160 PSI, and 190 PSI.

    Product Description:
    The MethHeadz Solenoid Forward Dual 90 Degree Nozzle Methanol Injection System is expertly engineered to reduce air intake temperatures while increasing fuel delivery. By strategically placing nozzle's into the air intake stream, this system enhances performance with a .310 orifice solenoid designed for high flow at fuel pressures up to 200 psi.

    The included discharge nozzle allows for easy fuel volume adjustments, guided by the supplied flow bench-generated data card. This system comes with 10 different tuning jets, providing accurate fuel flow measurements in pounds per hour at five pressure settings: 30 PSI, 100 PSI, 125 PSI, 160 PSI, and 190 PSI.


    Nozzle Placement:
    Nozzle placement is crucial for effectively reducing air intake temperatures while ensuring optimal atomization. According to sanctioning rules and regulations, the nozzles must be positioned behind the throttle blade to prevent flashback in the event of an intake backfire. When placing the nozzles behind the throttle blade, we recommend aiming the discharge against the incoming airflow. This orientation promotes effective atomization of the fuel into the air stream.

    If installing the discharge nozzles in the air intake tube, the ideal location is between 6" to 12" before the throttle body, with the discharge aimed directly at the throttle body. The further back the nozzle is placed in the air stream, the more time it has to reduce air intake temperatures and properly atomize the fuel. Proper nozzle placement is essential for maximizing the performance of your methanol injection system.
