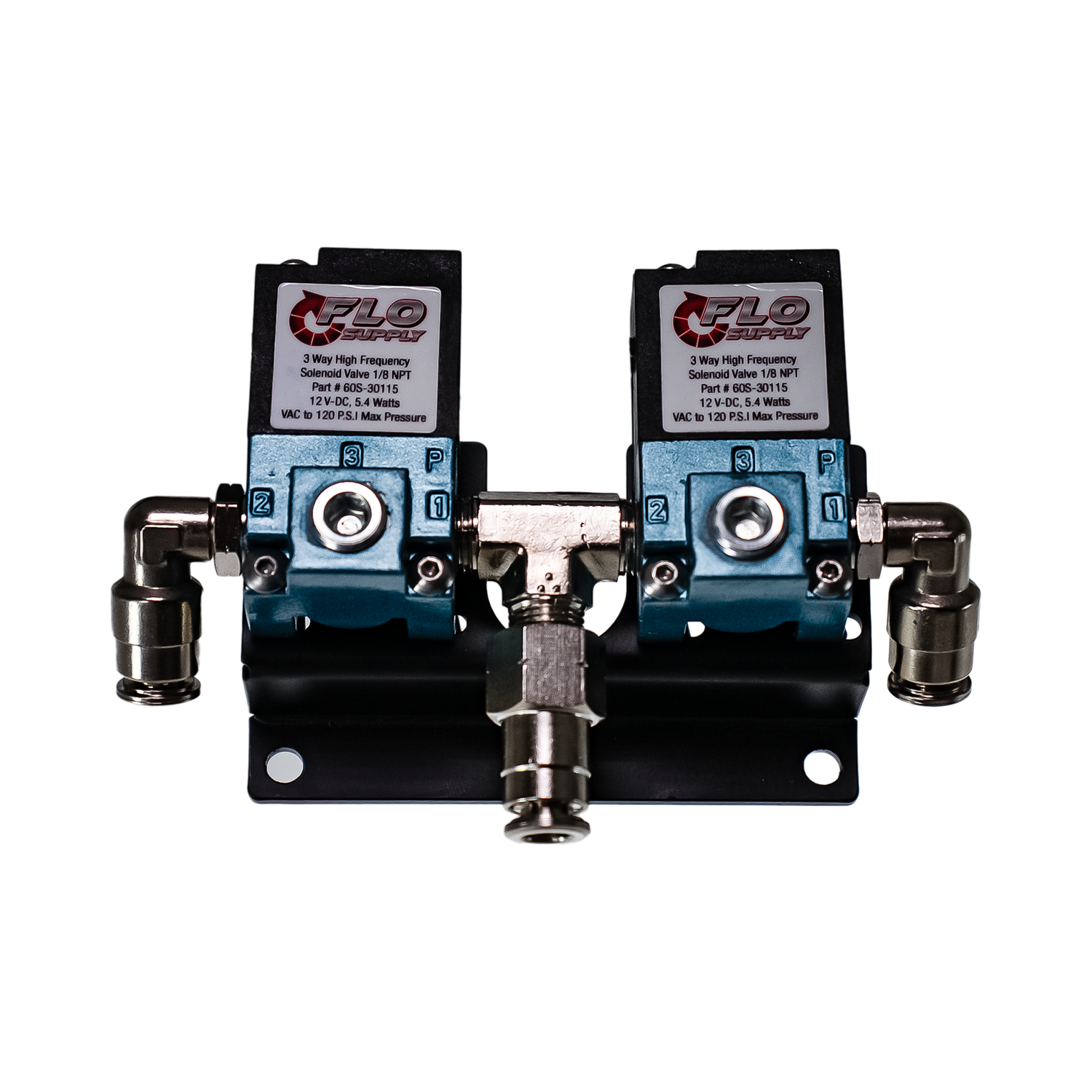

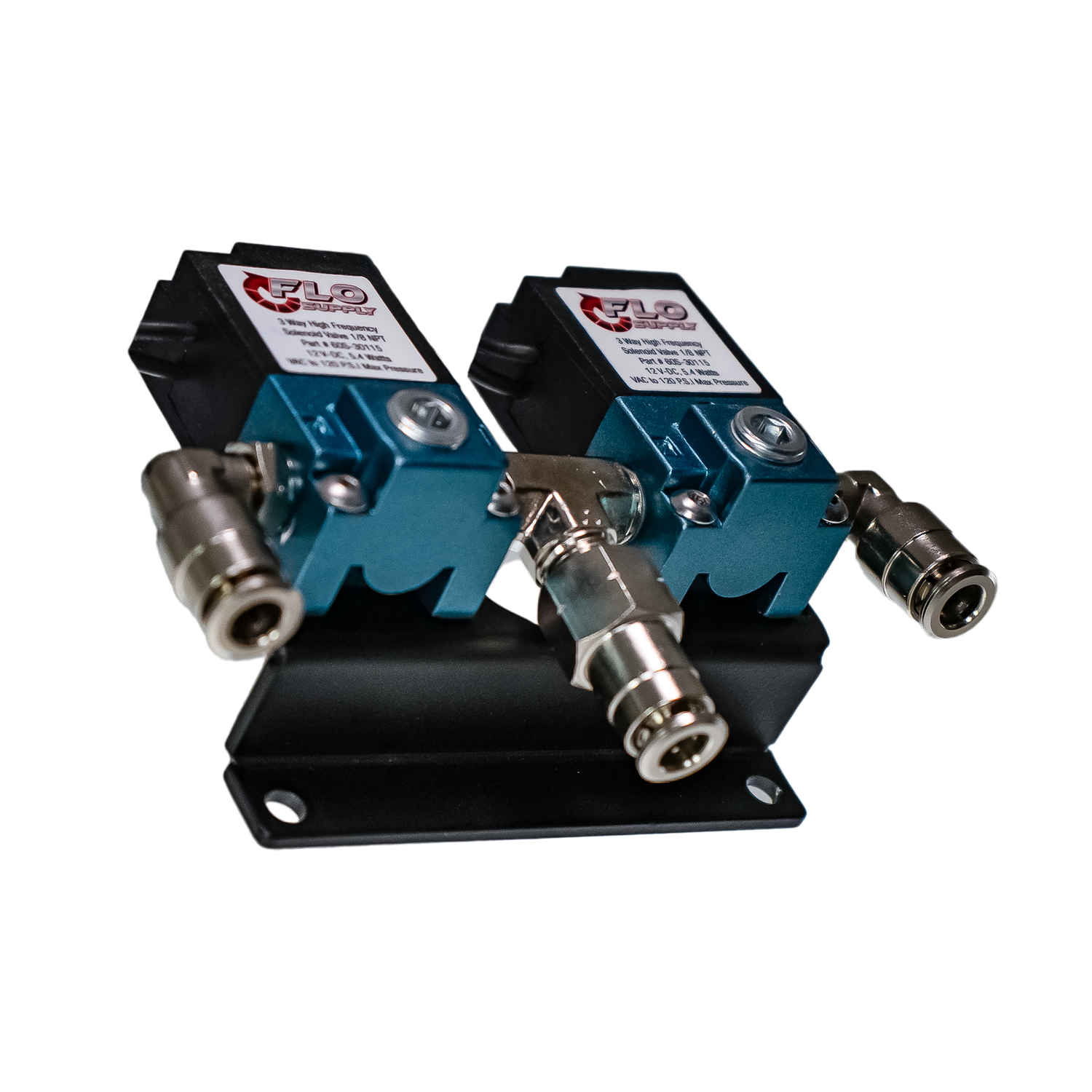

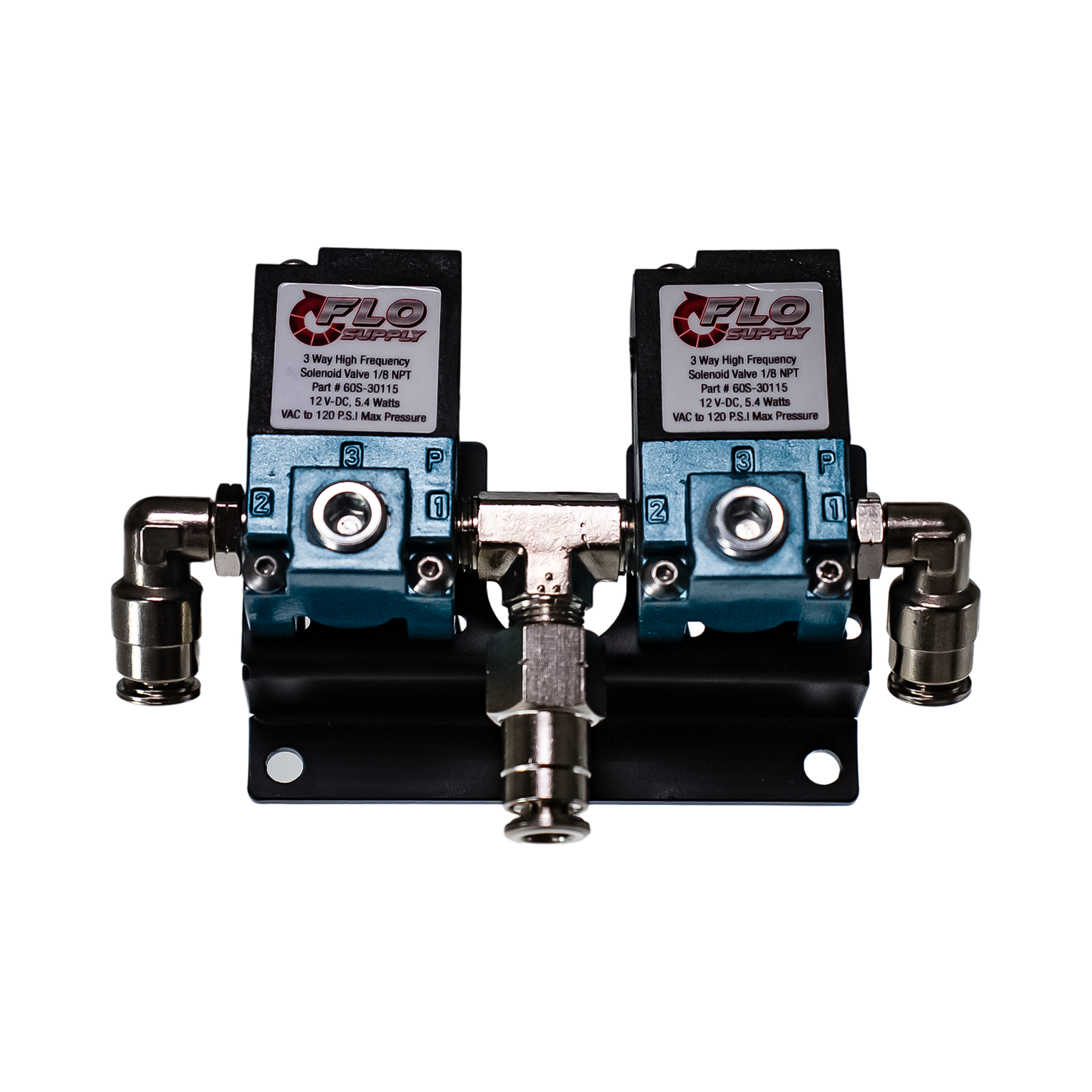

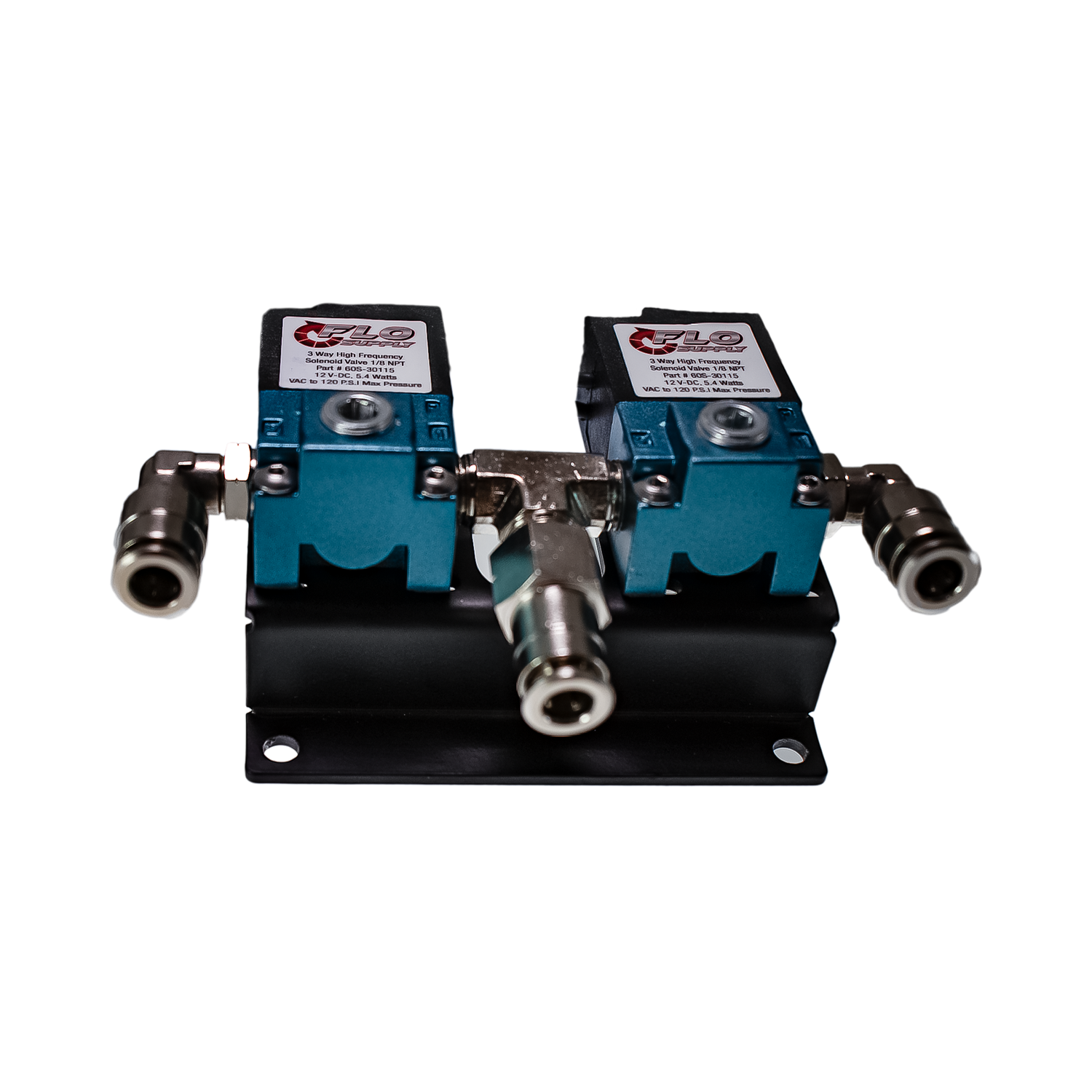

Dual 3-Port Boost Control Solenoid Valves with Stepped Degree Bracket & Fittings

• (1x) Stepped Dual Solenoid Bracket
• (2x) Flo Supply 3 Port Boost Control Solenoid Valve - (3/2 Valve)
• (2x) 1/4" Hose to 1/8" NPT Male Swivel Elbow Fitting
• (1x) 1/4" Hose to 1/8" NPT Female Straight Fitting
• (1x) 1/8" NPT x 1/8" NPT x 1/8" NPT Tee Fitting - Male/Male/Male
• (2x) 1/8" NPT Plug


Description:
Take precise control of your boost system with the Flo Supply 3 Port Boost Control Solenoid Valve Kit. Designed for reliability and fast response, this kit includes the high-performance 3-port solenoid valves, a precision-machined mounting bracket, and the necessary fittings for easy installation. Ideal for electronic boost controllers and standalone ECUs, this setup gives you accurate and consistent boost management in high-performance automotive applications.

Solenoid Operation:
A 3/2 valve for a solenoid refers to a valve with three ports and two positions, it works as follows:

1. Ports:
3 ports are typically labeled as:

• Port 1: Pressure supply port.
• Port 2: Output port.
• Port 3: Exhaust or return port.

2. Positions:

The valve can be in one of two states:

• Position 1: Solenoid energized (activated), allowing flow between certain ports (for example, from 1 to 2, and 3 to exhaust).
• Position 2: Solenoid de-energized (inactive), switching the flow to connect different ports (for example, from 1 to 3, and 2 to exhaust).

Basic Function:

In a 3/2 solenoid valve, the solenoid controls the flow of air (or another fluid) between these ports. For example, it might direct the pressure from port 1 to port 2 when energized, and when de-energized, it switches to direct pressure from port 1 to port 3, while port 2 exhausts.

Instructions:

• Dual-Solenoid Port Configuration, Plumbing and Wiring Instructions (SKU: 60S-30115, 60S-30115-SSBA, 60S-30115-S9BA, 60S-30115-DSBA, 60S-30115-D9BA)
