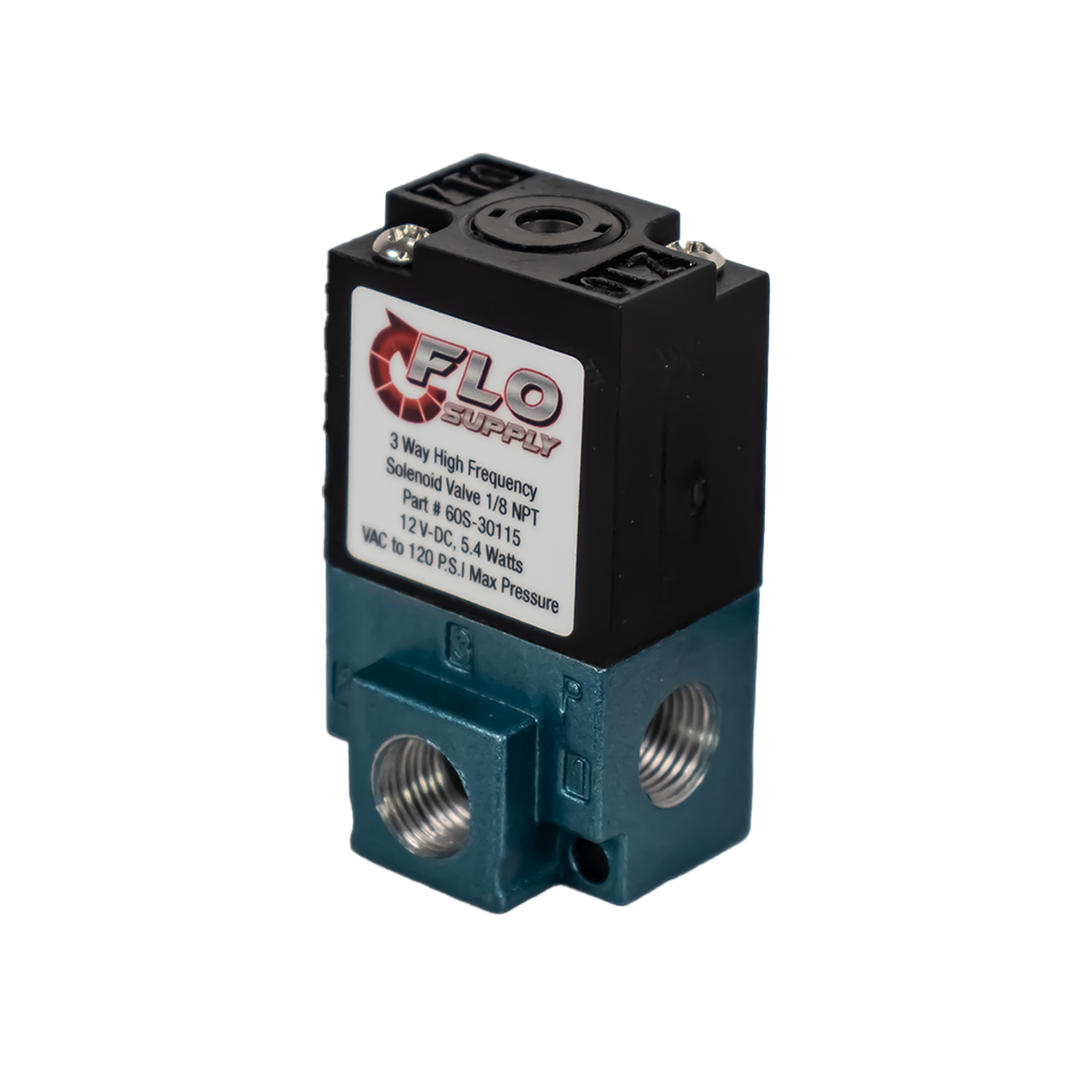

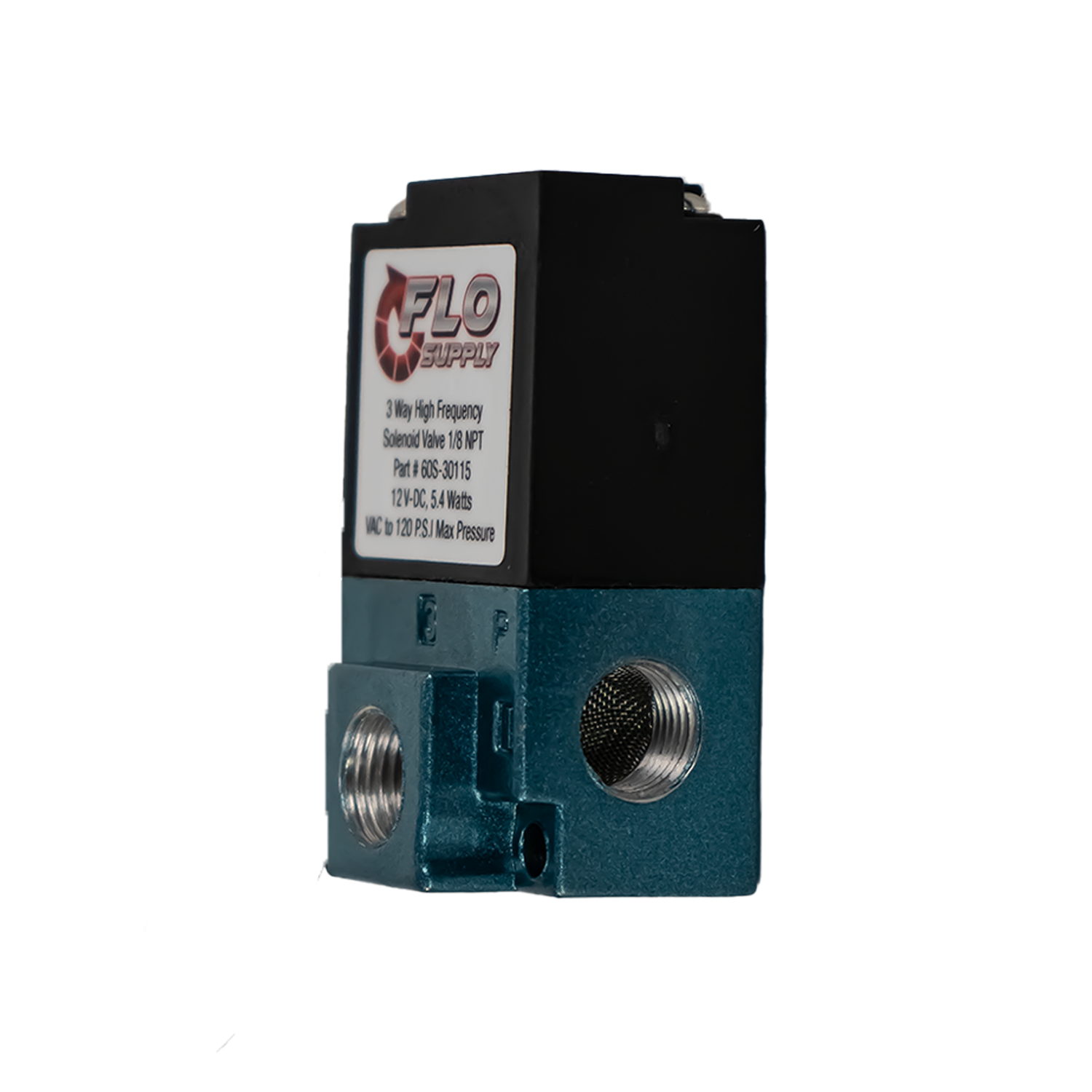

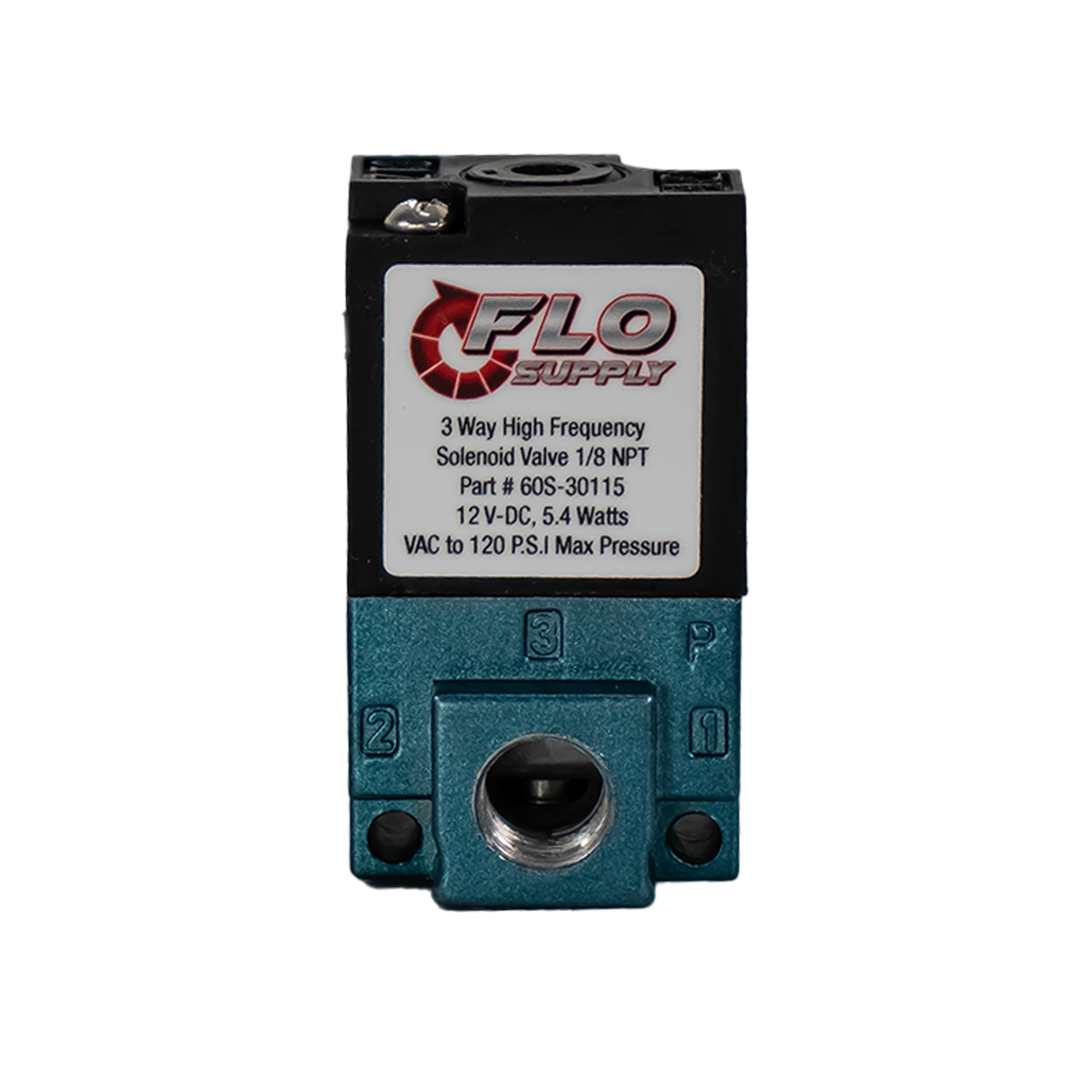

Flo Supply 3 Port Boost Control Solenoid Valve - (3/2 Valve)

• 3-Port 3/2 Valve Design
• 12 V-DC, 4.5 Watts
• 120 P.S.I Max Pressure
• 1/8" NPT Ports
• Suggested for Waste Gate Control
• Spool-Based Design

Product Description:
The Flo Supply 3-Port Boost Control Solenoid Valve is designed for precise flow control in automotive applications, especially waste gate control. Featuring a spool-based design with a solenoid actuator, this valve ensures reliable operation and accurate pressure regulation. With 12V-DC power, 4.5 watts, and a 120 PSI maximum pressure, it’s ideal for managing high-pressure systems. The 1/8" NPT ports make installation simple, while the two-position operation allows seamless switching between ports. Efficient, durable, and easy to install, this solenoid valve is the perfect solution for boosting performance in your vehicle’s control system.

Solenoid Operation:
A 3/2 valve for a solenoid refers to a valve with three ports and two positions, it works as follows:

1. Ports:

   • 3 ports are typically labeled as:
     • Port 1 (P): Pressure supply port.
     • Port 2 (A): Output port.
     • Port 3 (B): Exhaust or return port.
2. Positions:

   • 2 positions: The valve can be in one of two states:
     • Position 1: Solenoid energized (activated), allowing flow between certain ports (for example, from P to A, and B to exhaust).
     • Position 2: Solenoid de-energized (inactive), switching the flow to connect different ports (for example, from P to B, and A to exhaust).

Basic Function:

In a 3/2 solenoid valve, the solenoid controls the flow of air (or another fluid) between these ports. For example, it might direct the pressure from port 1 to port 2 when energized, and when de-energized, it switches to direct pressure from port 1 to port 3, while port 2 exhausts.
