Blower Lid Spray Bar Nitrous System

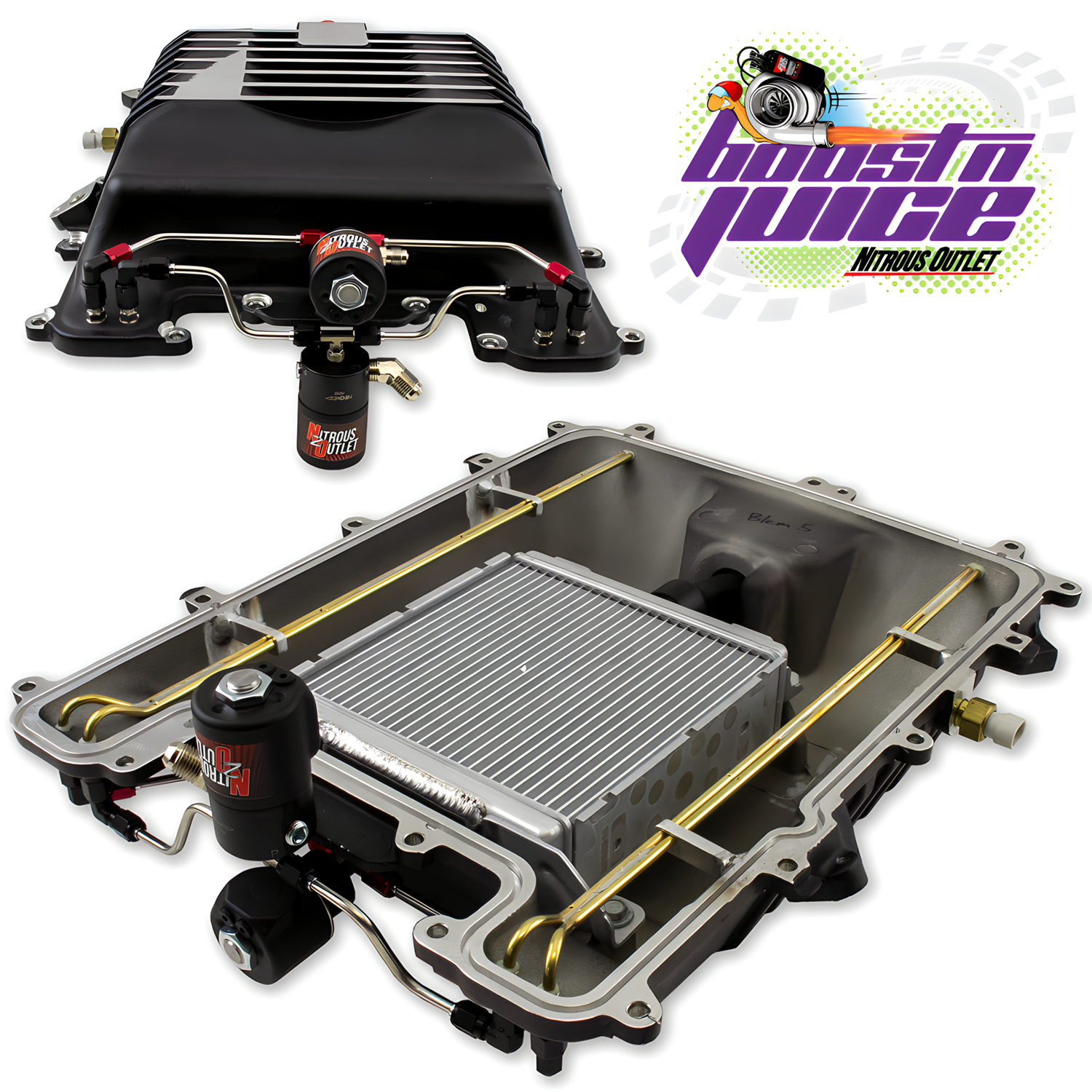

The Nitrous Outlet Blower Lid Spray Bars provide adjustable horse power levels from 100 to 300 HP and are designed to install into Late Model root style blower lids. The unique design of the Nitrous Outlet blower Fid Spray Bars provides the most precise cylinder to cylinder distribution possible from a spray bar type application. The spray bars are installed into the inner blower lid. The Nitrous and Fuel enter through the outside of the blower lid, into the internal spray bar's, filling the inner channel, discharging directly into each intake runner.

Not only do the spray bars provide a really clean installation, but can easily be hidden, and is a perfect option for cooling the intake air temperature.

How does the Blower Lid Spray Bars compare to Direct Port or EFI Nitrous Plates?

• Direct Port:

The Blower Lid Spray Bars are similar to a direct-port application in the sense that it is discharging directly into each individual intake runner, however you do not have the ability to adjust nitrous and fuel volume per intake runner like you would with a direct-port application.

• EFI Nitrous Plates:

The Blower Lid Spray Bars use a completely different technology than the Nitrous Outlet EFI Nitrous Plates. EFI Nitrous Plates bolt between the throttle body and intake manifold. The are designed to saturate the intake plenums incoming air flow, allowing the engine to pull the atomized mixture into each intake runner.

Construction:

The Nitrous Outlet Blower Lid Spray Bars are custom built to each blower lids unique requirements. The Blower Lid Spray Bars are designed to work in roots style blower lids where the intercooler bricks are located in the blower lid. The installation of the Blower Lid Spray Bars requires sending the intake manifold to Nitrous Outlet. Nitrous Outlet machines the blower lid and components, then installs them making sure that the discharge ports perfectly align with each intake runner.

How do I get a Blower Lid Spray Bar?

Orders for Nitrous Outlet Blower Lid Spray bars are similar to our Money Maker, Puck and Direct Port installation process. You will need to contact a Nitrous Outlet sales representative. The sales rep will work one on one with you to build a quote based upon your exact needs and intake manifold design. Once you approve the quote the sales rep will need some info from you to fill out a fabrication sheet, then provide you with a fabrication order number to write on the box when your intake manifold ships to Nitrous Outlet. Once your intake arrives to Nitrous Outlet the sales rep will contact you to let you know it arrived safely and to go over any final details. Then the fabrication department and intake specialist are finished building your system the sales rep will contact you to finalize your order for shipment back to you.
