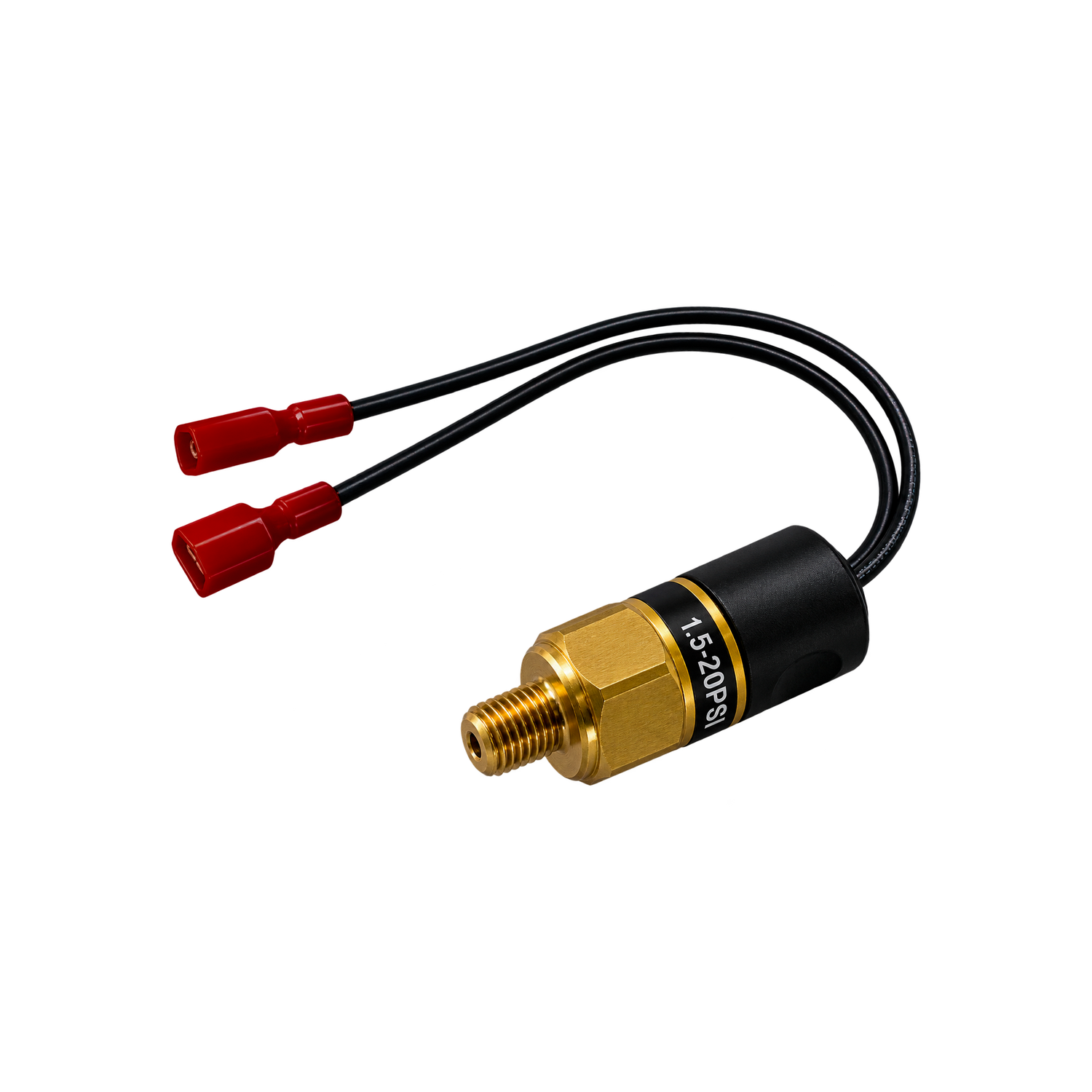

Low Boost Pressure System Activation Switch - Adjustable 1.5-20 PSI

• Adjustable 1.5–20 PSI / 0.10–1.4 Bar
• Factory Preset to 5 PSI
• 1/8" NPT Male Pressure Connection
• Boost Pressure Activated
• SPST – Normally Open
• Falling Pressure Switching
• Compact Brass Body
• IP68 Sealed Cap
• Teflon-Coated Polyimide Diaphragm
• EPDM Internal Seals
• Silver-Nickel Alloy Contacts
• Minimal Temperature Effect
• ±3% Full Set-Point Range Accuracy at 68°F / 20°C
• 6" Long 18 AWG Flying Leads
• Male Blade Electrical Connections
• Weight: 0.16 lb



Product Description:

The MethHeadz Low Boost Pressure System Activation Switch provides a simple and reliable way to automatically activate your water/methanol injection system based on boost pressure.

Once boost reaches the selected pressure setting, the switch completes the electrical circuit and activates the meth system. With an adjustable 1.5–20 PSI / 0.10-1.4 Bar operating range, the activation point can be matched to the needs of your specific boosted combination.

Each switch comes factory preset to 5 PSI and can be easily adjusted for earlier or later system activation. A 1/8" NPT male pressure connection provides a simple, compact installation, while the brass body, sealed construction, durable diaphragm, and high-quality electrical contacts are built to provide consistent performance in demanding automotive and racing environments.

Designed for use with MethHeadz water/methanol injection systems, this pressure switch offers a clean, straightforward, and dependable solution for boost-based meth activation.
