Flo Supply

Catch Tank - Square/Rear Mount (3 Gallon)

SKU: 60-00101

$289.99 USD
  • 3 Gallon Capacity
  • Internal Baffling
  • Powder Coated Texture Black
  • Laser Marked with Flo Supply Logo
  • 9.5" Wide x 8.5" Deep x 8.5" Tall
  • .090 Thick Aluminum
  • 2" Diameter X 19.5" Tall Vent Stack
  • 2 Female 16 AN ORB Bungs
  • 2 Female 1/8 NPT Bungs
  • 4 Surface Mounting Tabs
  • 8AN Drain Valve

Product Description:

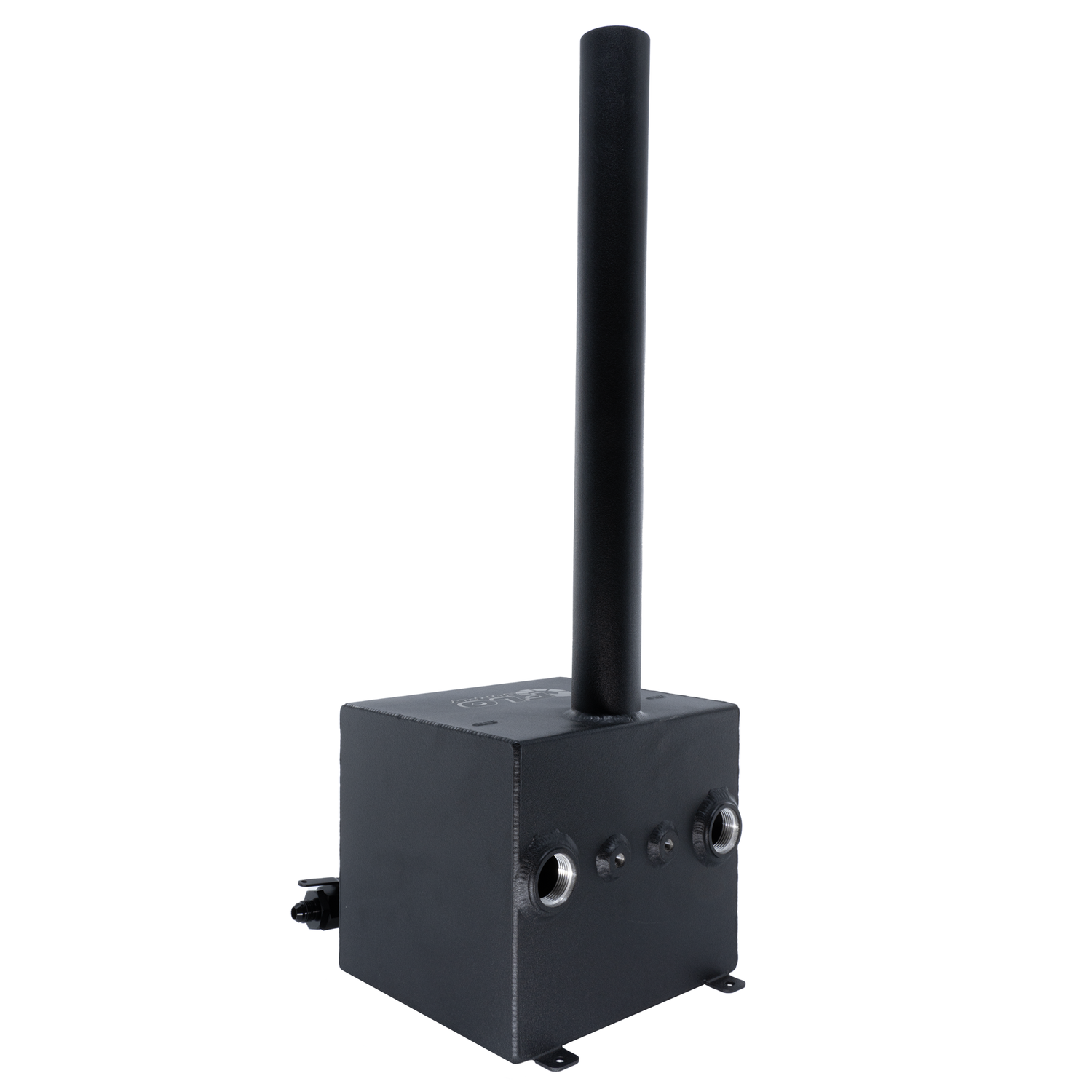

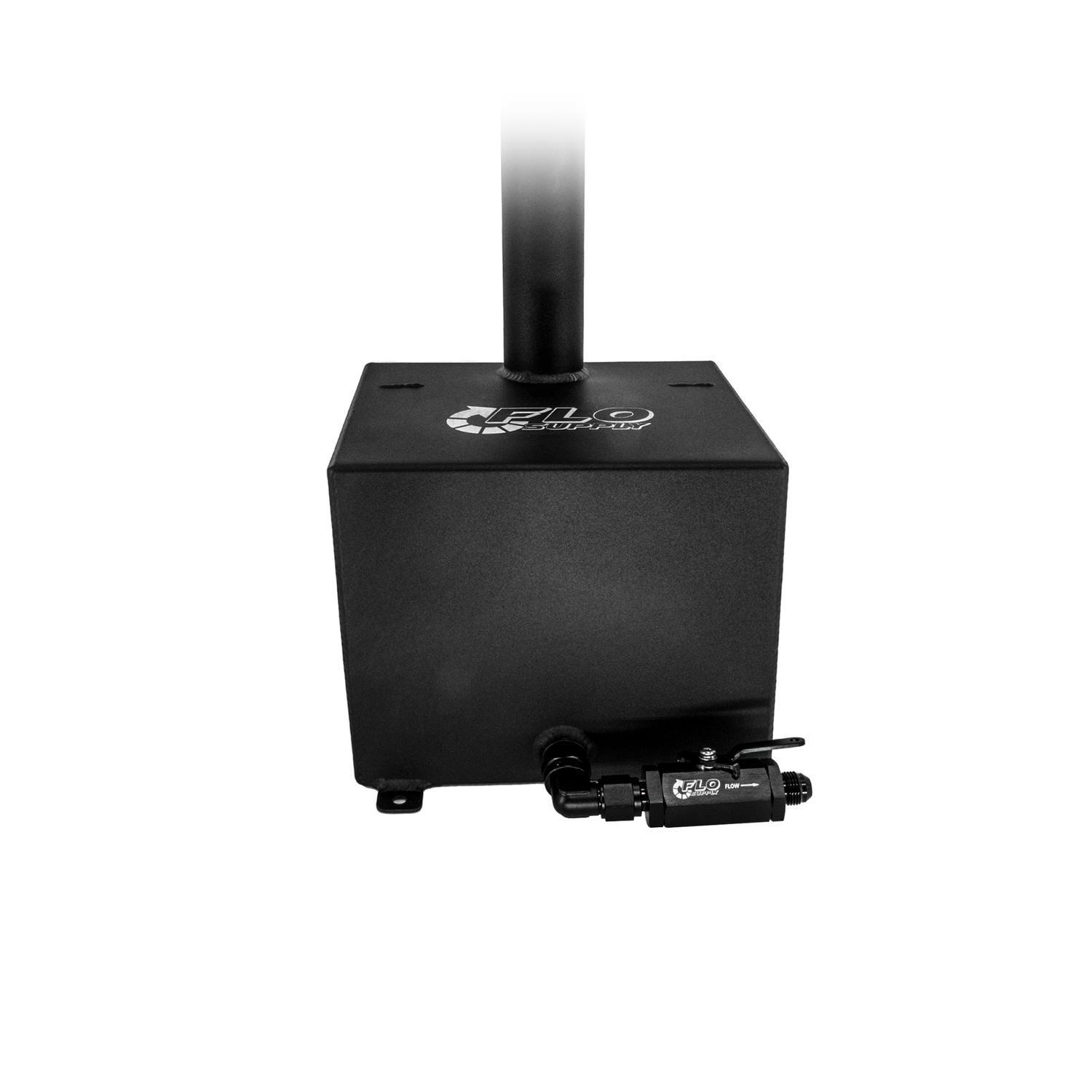

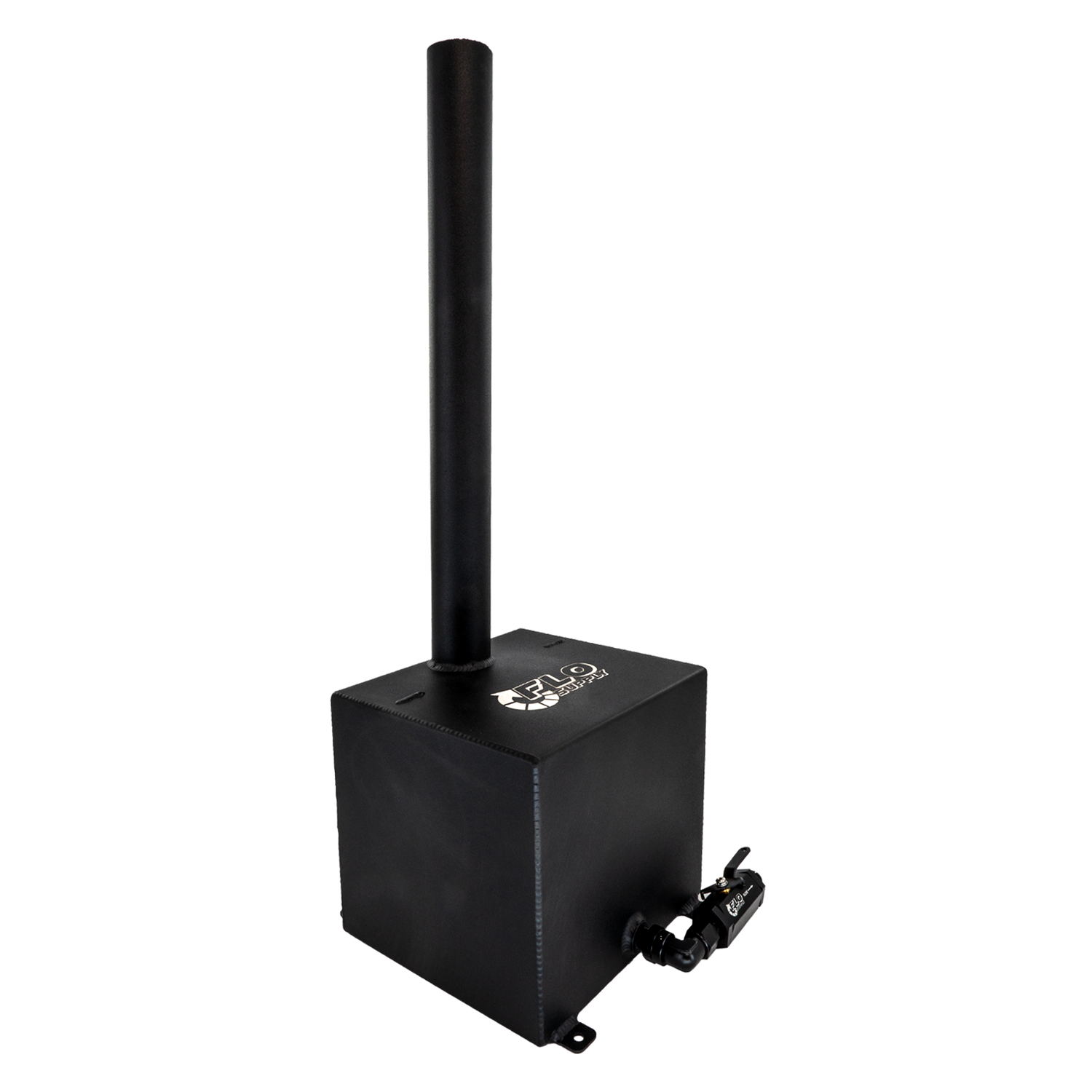

The Flo Supply 3 Gallon Catch Tank is designed for applications using alcohol or E85 blended fuels that produce increased condensation and require increased crank case venting.

This 3 Gallon tank has an internal baffle to prevent liquid slosh out upon vehicle acceleration. The tank dimensions are 9.5" Wide x 8.5" Deep x 8.5" Tall with a 2" Diameter X 19.5" Tall Vent Stack. The vent stack is designed to be cut to length per application fitment requirements.

Made from .090 thick aluminum with 2 female 16AN ORB bungs for hose fitting connections, 2 female 1/8 NPT bungs to be utilized for transmission or radiator over flow, 4 surface mounting tabs and includes a 8AN drain valve.

Powder coated matte texture black and laser marked with the Flo Supply Logo.

*Free Shipping Not Included*
